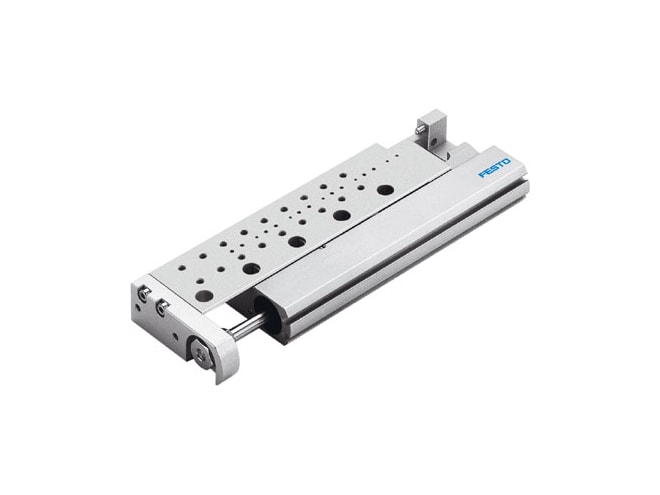

Festo SLF Series Mini Slide

Low-profile recirculating ball bearing slide unit with versatile adaptation possibilities to other actuators.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 0.5 to 0.8m/s max. advancing speed
  • 0.5 to 0.8m/s max. retracting speed
  • 1 to 10bar operating pressure
  • 6 to 16mm diameter
  • 10 to 80mm stroke length
  • 5mm adjustable end-position range per end stop
  • Position sensing for proximity switch
  • Mounted via through-hole or female thread
  • Any mounting position
  • Operating medium: compressed air to ISO 8573-1:2010 [7:4:4]

The Festo SLF Series Mini Slide applies a piston, piston rod, slide, yoke, ball bearing cage guide design with non-adjustable cushioning at both ends. Lubricated operation is possible (in which case lubricated operation will always be required).
