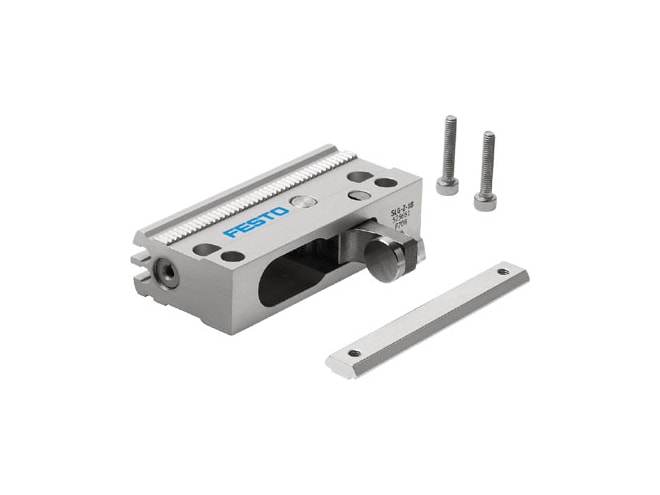

Festo SLG-Z-18-A Intermediate Position Attachment

Features

• Optional mounting position
• Swivel module design
• Via proximity switch position detection
• Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
• Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
• 2 - Moderate corrosion stress corrosion resistance class cRC
• VDMA24364-B2-L lABS (PWIS) conformity
• 75G product weight
• Via through-hole and dowel pin type of mounting
• Nickel-plated steel material stops
• PUR material seals
• Aluminium material housing
• Hard anodised material housing
• 1BAR to 8BAR operating pressure
• -10GC ambient temperature to 60GC ambient temperature
• Pneumatic connection m3
