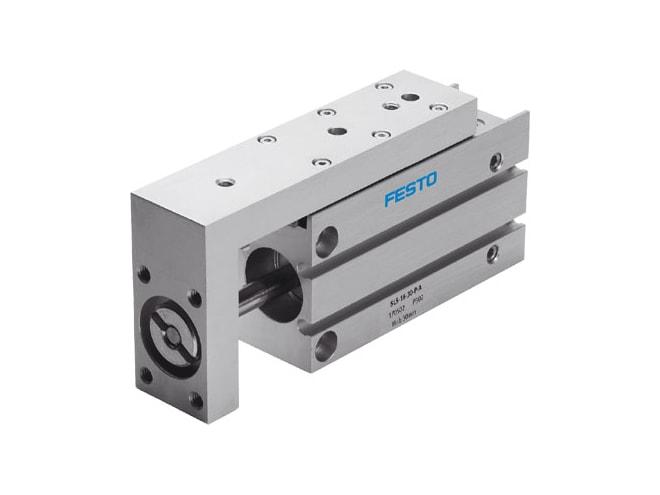

Festo SLS Series Mini Slide

Narrow ball recirculating slide actuator with fixed cushioning.

This model has 18 variants.
Highlights...

Features

  • Size 6 to 16
  • 5 to 30 stroke
  • 0.5 to 0.8m/s max. advancing & retracting speed
  • 1 to 10bar operating pressure
  • Operating medium: compressed air to ISO 8573-1:2010 [7:4:4]
  • Lubricated operation possible
  • Non-adjustable cushioning at both ends
  • Position sensing for proximity switch
  • Mounted via female thread or through-hole

The Festo SLS Series Mini Slide applies a flat design and a ball bearing cage guide, and provides versatile mounting options. The slide includes elastic cushioning rings/plates on both sides.
