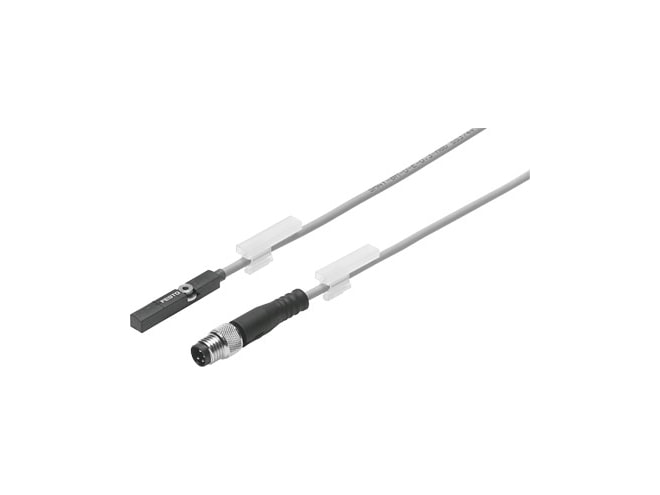

Festo SMAT Series Position Transmitter

Magnetic hall measuring principle; sensing range up to 52mm.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open 8:00 am to 5:30 pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 0 to 10V analog output
  • 15 to 30VDC operating voltage range
  • For T-slot
  • Any mounting position
  • 40mm or less position measuring range
  • Signal processing: 3m/s max. speed of travel
  • 0.05mm or less path resolution
  • cULus listed, RCM certifications
  • KC EMC
  • UL E232949 certificate issuing authority
  • RoHS-compliant, halogen-free materials

The Festo SMAT Series Position Transmitter is designed for contactless sensing of the piston position of drives that can be magnetically detected. It supplies a displacement-proportional analog output signal in the position measuring range. It is connected directly to analog PLC inputs without any accessories.

With its extremely compact design, the SMAT-8M is the ideal solution for grippers, short-stroke cylinders and all applications in which installation space is restricted.
