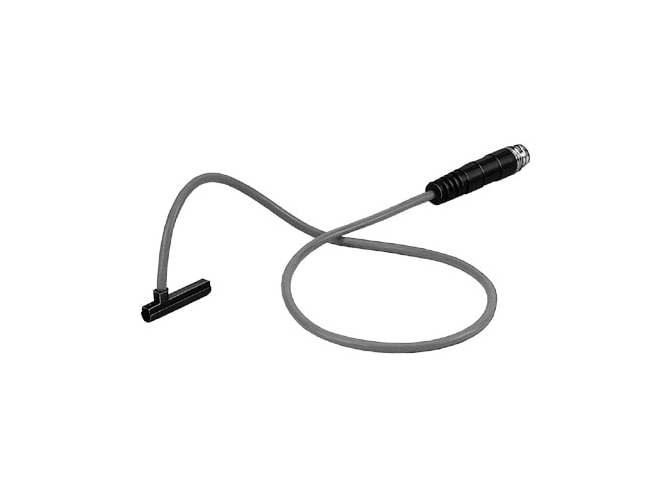

Name: Festo SME-10-SQ-LED-24 Proximity Sensor
Price: 69.26 USD
Availability: BackOrder

$69.26

Part Numbers

SME-10-SQ-LED-24
173213

Highlights...

SME-10-SQ-LED-24
By Festo
FREE Shipping on orders of $1,000 or more
Usually ships in 2-3 weeks

Features

For C-slot design
EN 60947-5-2 conforms to standard
991619 symbol
RCM trademark approval
To EU EMC Directive cE mark (see declaration of conformity)
In accordance with EU RoHS Directive cE mark (see declaration of conformity)
To UK instructions for EMC cE marking (see declaration of conformity)
To UK RoHS instructions cE marking (see declaration of conformity)
RoHS-compliant note on materials
Support / actuator-sensor overview "The right sensor for the actuator" instructions on use
Position measured variable
Magnetic reed measuring principle
-20GC ambient temperature
70GC ambient temperature
0.2MM repetition accuracy
Contacting, bipolar switching output
N/O contact switching element function
0.6MS switch-on time
0.05MS switch-off time
500HZ max. switching frequency
100MA max. output current
1W max. switching capacity dC
0V voltage drop
No short circuit current rating
Not available overload protection
12V operational voltage range aC
27V operational voltage range aC
12V operational voltage range dC
27V operational voltage range dC
No reverse polarity protection
Cable with plug electrical connection 1, connection type
M8x1, A-coded, to EN 61076-2-104 electrical connection 1, connector system
3 electrical connection 1, number of connections/cores
991155 electrical connection 1, connection pattern
Lateral connection outlet orientation
0.3M cable length
Grey cable sheath colour
TPE-U(PUR) material cable sheath
Clamped in C-slot type of mounting
Insertable in the slot lengthwise type of mounting
0.1NM tightening torque
Optional mounting position
5G product weight
Black housing colour
Brass, nickel-plated material housing
PPS material housing
TPE-U(PU) material housing
High-alloy stainless steel material housing
Yellow LED switching status indication
-5GC ambient temperature with moving cable
70GC ambient temperature with moving cable
IP65 degree of protection
IP67 degree of protection
50V insulation voltage
0.8KV immunity to surge
VDMA24364-B2-L lABS (PWIS) conformity
3 pollution degree
