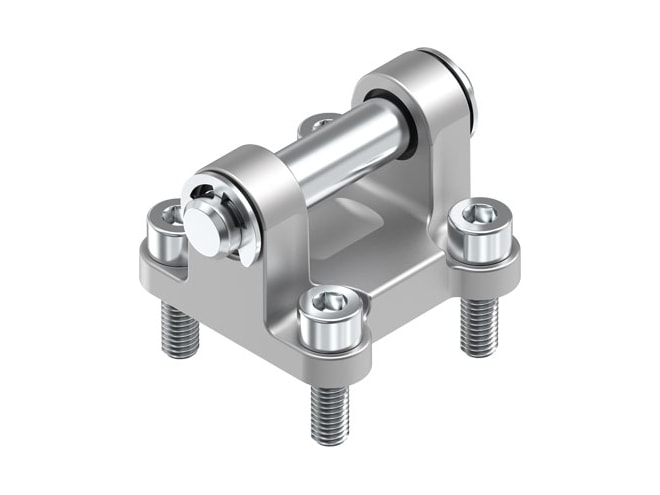

Festo SNCB-80-R3 Swivel Flange

Features

• 80 size
• ISO 15552 based on standard
• High corrosion protection variants
• 3 - high corrosion stress corrosion resistance class cRC
• VDMA24364-B1/B2-L lABS (PWIS) conformity
• Metals with more than 5% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils suitability for the production of li-ion batteries
• 632G product weight
• RoHS-compliant note on materials
• Die-cast aluminium material mounting
• With protective coating material mounting
• High-alloy stainless steel material bolt
• Polymer material bearing
• Galvanised steel material disc
• High-alloy stainless steel material screws
• Spring steel, galvanised material lock
• -40GC ambient temperature to 90GC ambient temperature
