Festo SOEG Series Receiver

Light barrier in rectangular shape for ranges up to 20m.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open 8:00 am to 5:30 pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 0 to 600mm working range
  • 10 to 20Nm tightening torque
  • 10 to 36VDC operating voltage range
  • 2V or less voltage drop
  • 20% residual ripple
  • 200mA max. output current
  • 15mA no-load supply current
  • 1,000Hz max. switching frequency
  • Red light type

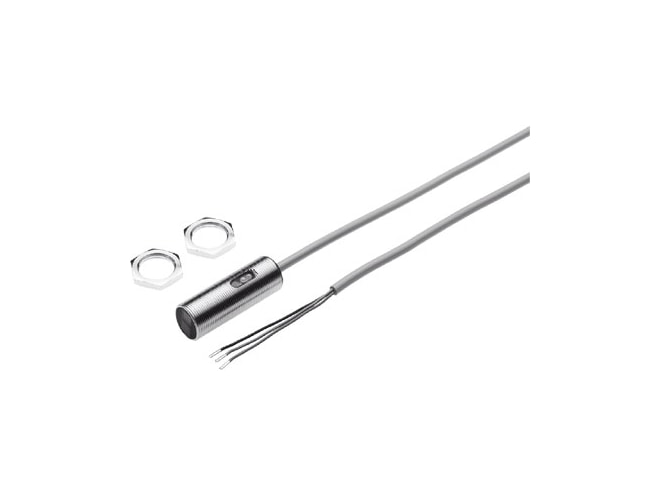

The Festo SOEG Series Receiver acts as a transmitter or receiver through-beam sensor. It measures position via an optoelectronic measuring principle, has a round design, and has an electrical connection via open cable end or plug.
