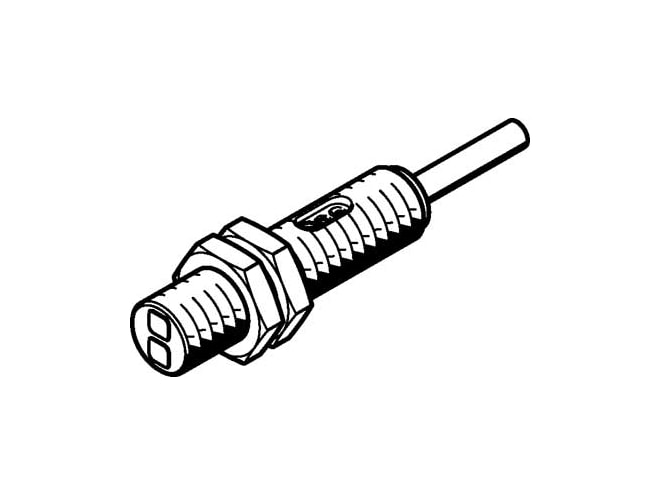

Festo SOEG-RT-M12-NS-K-2L Diffuse Sensor

Features

• Round design
• EN 60947-5-2 conforms to standard
• 991639 symbol
• RCM trademark approval
• C UL us listed (OL) approval
• To EU EMC Directive cE mark (see declaration of conformity)
• Position measured variable
• Optoelectronic measuring principle
• Diffuse sensor measurement method
• Red type of light
• 70MM operating distance
• 300MM operating distance
• -25GC ambient temperature
• 55GC ambient temperature
• NPN switching output
• Light switching switching element function
• 30MM hysteresis
• 1000HZ max. switching frequency
• 200MA max. output current
• 2V voltage drop
• Pulsed short circuit current rating
• 10V operational voltage range dC
• 36V operational voltage range dC
• 20% residual ripple
• 15MA no-load supply current
• For all electrical connections reverse polarity protection
• 3-wire electrical connection
• Cable electrical connection
• 2.5M cable length
• TPE-U(PUR) material cable sheath
• PVC material insulating sheath
• M12 size
• Via lock nut type of mounting
• 10NM tightening torque
• Optional mounting position
• 100G product weight
• Brass material housing
• Chrome-plated material housing
• Yellow LED switching status indication
• Green LED function reserve indication
• Potentiometer setting options
• 70MM setting range lower limit
• 300MM setting range upper limit
• -5GC ambient temperature with moving cable
• 55GC ambient temperature with moving cable
• IP65 degree of protection
• IP67 degree of protection
• 2 - Moderate corrosion stress corrosion resistance class cRC
• VDMA24364 zone III lABS (PWIS) conformity
