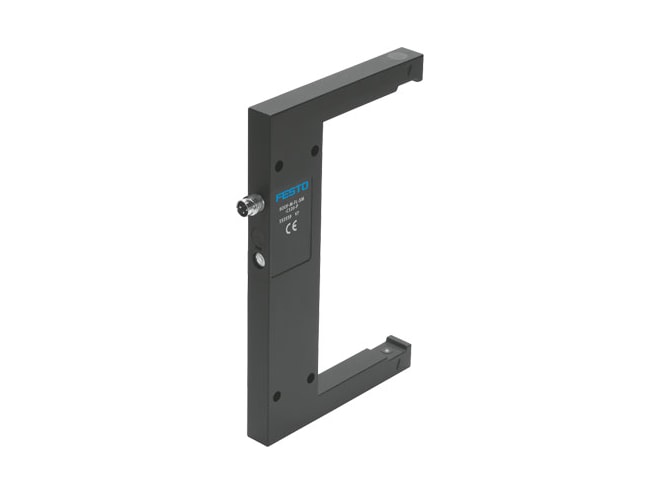

Festo SOOF Series Fork Light Barrier

Through-beam sensor with minimal installation effort.

This model has 12 variants.
Highlights...

Features

  • 0.3 to 0.5mm min. object diameter
  • 0.02 or 0.03mm repetition accuracy
  • 10 to 30VDC operating voltage range
  • +/-5 to 10% residual ripple
  • 100mA max. output current
  • 30mA no-load supply current
  • Plug M8x1, 3-pin electrical connection
  • Switchable element function
  • Pulsed short circuit current rating
  • 0.8kV surge resistance

The Festo SOOF Series Fork Light Barrier is an optoelectronic sensor that comes in a polymer or metal design. The housing has high shock and vibration resistance, and the unit includes LED indicators.
