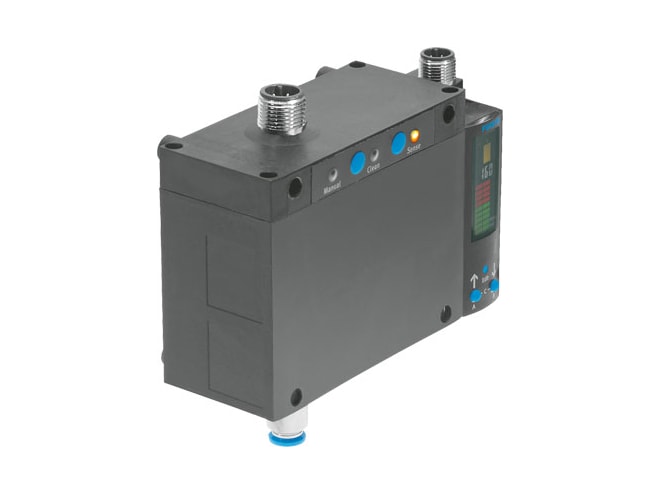

Festo SOPA Series Air Gap Sensor

For high-precision contact and distance monitoring.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 4 to 7bar operating pressure
  • 20 to 200μm sensing range
  • Analog output options:
    • 1 to 5V
    • 0 to 10V
    • 4 to 20mA
  • 2-color LCD display
  • Teachable distance threshold values
  • Sensing of the entire distance value via IO-Link or analog output
  • Setting option: IO-Link teach-in or numerical setting using three-button operation
  • Integrated air jet function
  • Multi-colored LCD display
  • H-rail, wall, or through-hole mounting
  • C-Tick certification

The Festo SOPA Series Air Gap Sensor senses the exact μm range whether the workpiece is lying flat or resting against the work surface before clamping and whether the machining tool is exactly aligned with the spindle.

Alternatively, the distance value can be transmitted to the controller via IO-Link or the analog output. Parameters can therefore be changed even when the system is running. This makes it easy to adjust the switching points when workpieces change during the process.
