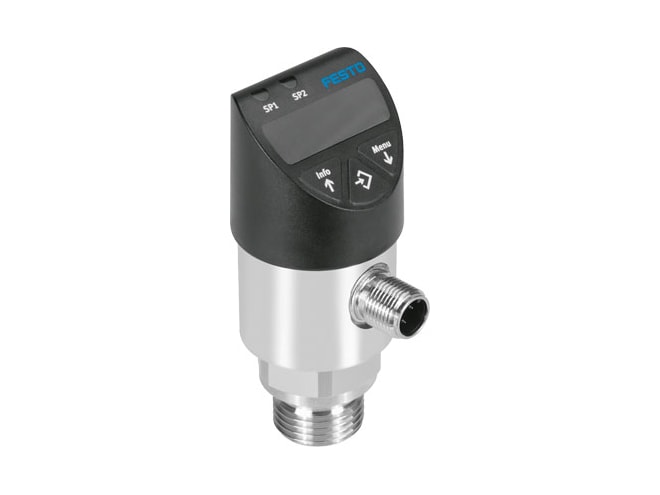

Festo SPAW Series Pressure Sensor

For liquid and gaseous media; display housing roundtable 320°, display at an angle of 45°.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open 8:00 am to 5:30 pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 1% accuracy, 0.15% repetition accuracy
  • Materials in contact with media:
    • CrNiMo: 316L, from a measuring range of 10bar the membrane consists of 13-8-PH
  • 4-digit LED display
  • Displays:
    • bar
    • MPa
    • kPa
    • PSI
    • kgf/cm2
  • M12 electrical connection
  • G1/4 female thread or G1/2 male thread

The Festo SPAW Series Pressure Sensor measures in 9 measuring ranges from -1 to 1bar and 0 to 100bar. It is suitable for all media, including gases, water, or refrigerants that do not corrode the stainless steel housing nor the measuring component. Three pushbuttons allow for quick and easy adjustment of the switching outputs.
