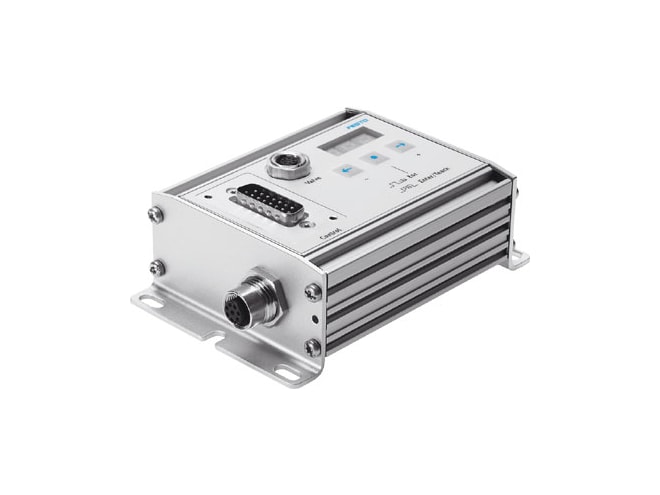

Festo SPC11 Series End Position Controller

Supports pneumatic actuators with piston rod actuators, rodless actuators and rotary actuators.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 24VDC operating voltage (-25 to 25%)
  • Current consumption:
    • With valve: 1.1 or 1.3A
    • Without valve: 70 to 170mA
  • 8 digital inputs, 5 digital outputs
  • 4mA input current at 24VDC
  • Min. 20ms duty cycle
  • 500mA max. tripping current

The Festo SPC11 Series End Position Controller allows fast travel between two fixed stops with electronic end-position cushioning, and up to two freely selectable intermediate positions. Optimum operating behavior is maintained even with changes in weight/load of up to 30% of the total moving mass.
