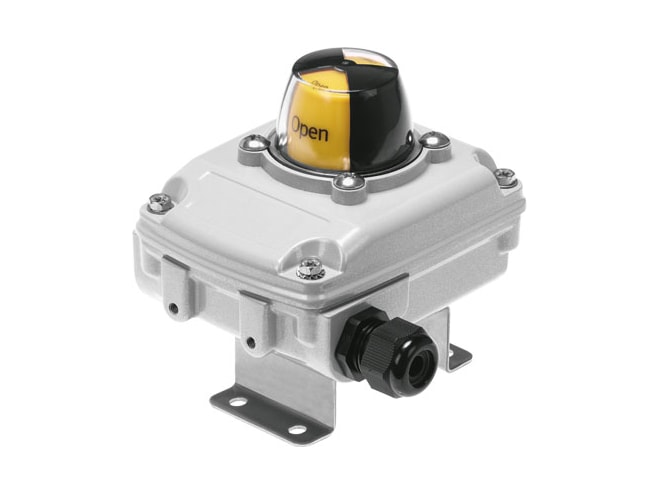

Festo SRBC-CA3-YR90-N-1-N-C2P20 Sensorbox

Features

• RCM trademark approval
• C CSA us (OL) approval
• To EU EMC Directive cE mark (see declaration of conformity)
• In accordance with EU RoHS Directive cE mark (see declaration of conformity)
• To UK instructions for EMC cE marking (see declaration of conformity)
• To UK RoHS instructions cE marking (see declaration of conformity)
• KC-EMV kC mark
• RoHS-compliant note on materials
• SIL 2 safety integrity level (SIL)
• Inductive measuring principle
• NPN switching output
• N/O contact switching element function
• 1000HZ max. switching frequency
• 100MA max. output current dC
• 3V voltage drop
• 0MA off-state current
• 0.5MA off-state current
• Pulsed short circuit current rating
• 10V operational voltage range dC
• 30V operational voltage range dC
• 15MA no-load supply current
• For all electrical connections reverse polarity protection
• Screw terminal electrical connection
• Terminal strip electrical connection 1, connection type
• Straight electrical connection 1, cable outlet
• Spring-loaded terminal electrical connection 1, connector system
• 10 electrical connection 1, number of connections/cores
• 0.25I2 connectable nominal cross section conductor
• 2.5I2 connectable nominal cross section conductor
• M20x1.5 cable fitting
• 127 mm x 98 mm x 122 mm dimensions (W x l x h)
• VDI/VDE 3845 size AA 1 connection point for positioner and position sensor conforms to standard
• Optional mounting position
• 800G product weight
• Grey housing colour
• Die-cast aluminium material housing
• NBR material seals
• High-alloy stainless steel material shaft
• High-alloy stainless steel material screws
• PA material blanking plug
• High-alloy stainless steel material mounting bracket
• PC material indicator
• PA material cable gland
• High-alloy stainless steel material snap ring
• High-alloy stainless steel material disc
• PC material cover cap
• Yellow/red position indicator
• 0DEG setting range of angular detection
• 90DEG setting range of angular detection
• IP67 degree of protection
• NEMA 4/4X degree of protection
• Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 shock resistance
• Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 vibration resistance
• 0 - No corrosion stress corrosion resistance class cRC
• VDMA24364 zone III lABS (PWIS) conformity
• 3 pollution degree
• -20GC ambient temperature to 70GC ambient temperature
• -20GC to 50GC storage temperature
• 5MM to 13MM permissible cable diameter
