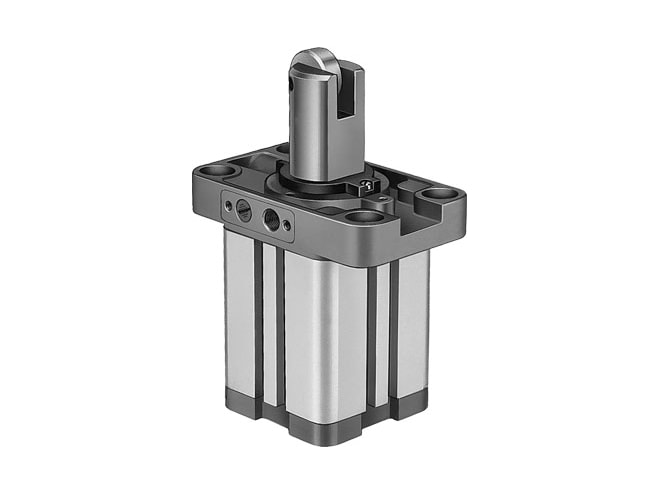

Festo STAF Series Stopper Cylinder

Rocker arm design with rebound protection and separating stop function.

This model has 2 variants.
Highlights...

Features

  • 30 or 40mm stroke
  • 1 to 10bar operating pressure
  • 50mm piston rod diameter
  • Operating medium: compressed air to ISO 8573-1:2010 [7:-:-]
  • Piston cylinder with spring return design
  • Elastic cushioning rings/pads at both ends
  • Position sensing via proximity switch
  • Mounting via through-hole or with female thread
  • Single- or double-acting mode of operation

The Festo STAF Series Stopper Cylinder applies simple actuation via the valve terminal. A flange-mounted solenoid valve permits fast actuation even at great distances and with individual stopper cylinders.
