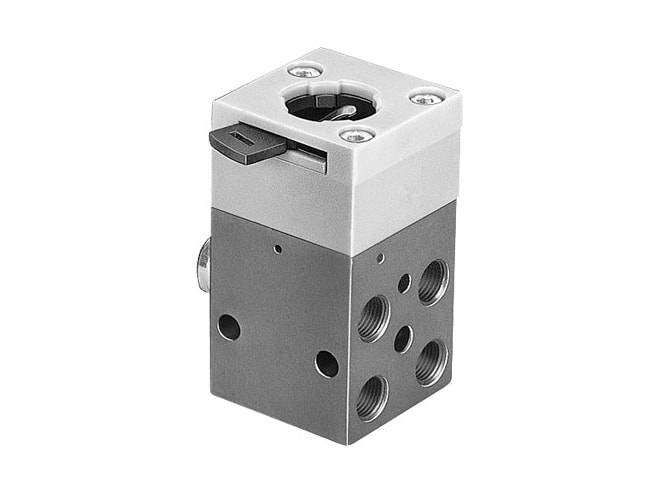

Festo SVS-4-1/8 Front Panel Valve

$257.01
Part Numbers
  • SVS-4-1/8
  • 10192
Highlights...

Features

  • 4/2-way, single solenoid valve function
  • Mechanical type of actuation
  • 120L2 standard nominal flow rate
  • 0.35MPA operating pressure
  • 0.8MPA operating pressure
  • 3.5BAR operating pressure
  • 8BAR operating pressure
  • Piston seat design
  • Mechanical spring type of reset
  • Soft sealing principle
  • Optional mounting position
  • Direct type of piloting
  • Non-reversible flow direction
  • 991108 symbol
  • Compressed air to ISO 8573-1:2010 [-:-:-] operating medium
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • 8N actuating force
  • With through-hole type of mounting
  • POM material cover
  • NBR material seals
  • TPE-U(PU) material seals
  • Aluminium material housing
  • -10GC ambient temperature to 60GC ambient temperature
  • Pneumatic connection g1/8 , port 1
  • Pneumatic connection g1/8 , port 2
  • Pneumatic connection g1/8 , port 3
  • Pneumatic connection g1/8 , port 4
