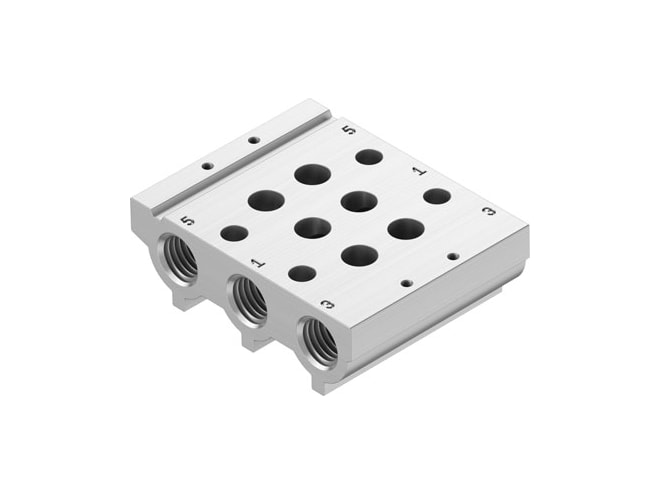

Festo VABM-L1-10S-G18-2 Manifold Rail
$43.70
Part Numbers
- VABM-L1-10S-G18-2
- 566558
Highlights...
- VABM-L1-10S-G18-2
- By Festo
- FREE Shipping on orders of $1,000 or more
- FREE Lifetime Tech Support
Overview
Features
- 10.5MM grid dimension
- 16 max. number of valve positions
- -0.09MPA operating pressure
- 1MPA operating pressure
- -0.9BAR operating pressure
- 10BAR operating pressure
- RCM trademark approval
- C UL us - Recognized (OL) approval
- 2 - Moderate corrosion stress corrosion resistance class cRC
- VDMA24364-B1/B2-L lABS (PWIS) conformity
- Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils suitability for the production of li-ion batteries
- Class 5 according to ISO 14644-1 cleanroom class
- 1.5NM max. tightening torque h-rail mounting
- 0.45NM max. tightening torque for valve mounting
- 3NM max. tightening torque wall mounting
- 66G product weight
- RoHS-compliant note on materials
- Wrought aluminium alloy material manifold rail
- Pneumatic connection g1/8 , port 1
- Pneumatic connection g1/8 , port 3
This product is an accessory for the following products:
