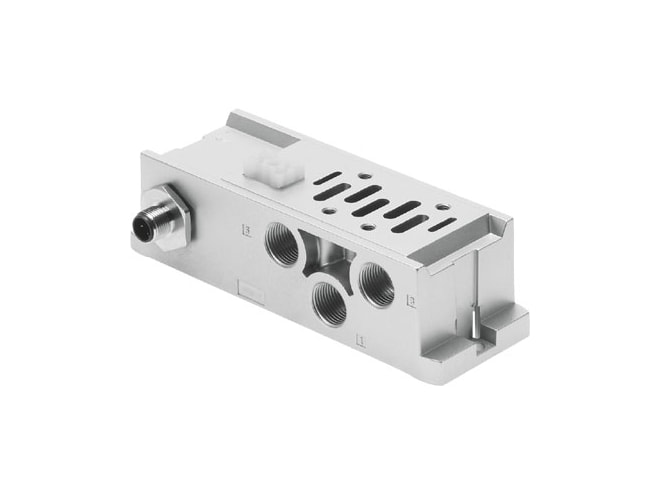

Festo VABS-S2-1S-G38-B-R3 Sub-base

$97.65
Part Numbers
  • VABS-S2-1S-G38-B-R3
  • 546104
Highlights...

Features

  • 42MM construction width
  • ISO 5599-2 based on standard
  • Optional mounting position
  • Internal pilot air supply
  • -0.09MPA operating pressure
  • 1MPA operating pressure
  • -0.9BAR operating pressure
  • 10BAR operating pressure
  • 24V operational voltage range dC
  • 0.8KV immunity to surge
  • 2A current rating at 40° c
  • 3 pollution degree
  • Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
  • Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
  • 0 - No corrosion stress corrosion resistance class cRC
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • IP65 degree of protection
  • NEMA 4 degree of protection
  • In assembled state degree of protection
  • 386G product weight
  • With through-hole type of mounting
  • RoHS-compliant note on materials
  • Die-cast aluminium material sub-base
  • -5GC ambient temperature to 50GC ambient temperature
