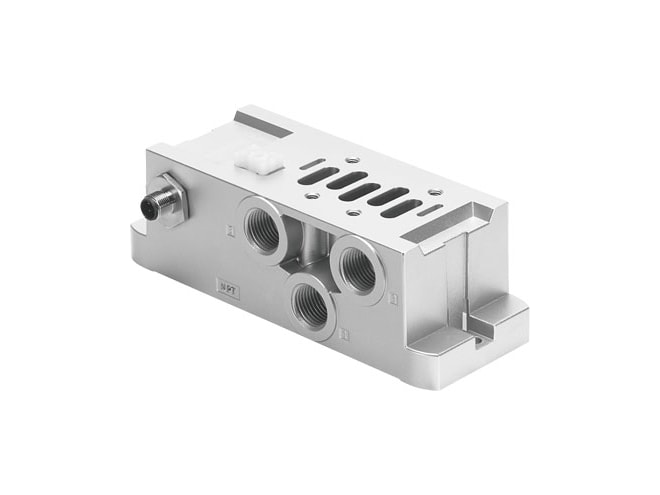

Festo VABS-S2-2S-G12-B-R3 Sub-base

$117.76
Part Numbers
  • VABS-S2-2S-G12-B-R3
  • 555645
Highlights...

Features

  • 52MM construction width
  • ISO 5599-2 based on standard
  • Optional mounting position
  • Internal pilot air supply
  • -0.09MPA operating pressure
  • 1MPA operating pressure
  • -0.9BAR operating pressure
  • 10BAR operating pressure
  • 24V operational voltage range dC
  • 0.8KV immunity to surge
  • 2A current rating at 40° c
  • 3 pollution degree
  • Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
  • Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
  • 0 - No corrosion stress corrosion resistance class cRC
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • IP65 degree of protection
  • NEMA 4 degree of protection
  • In assembled state degree of protection
  • 815G product weight
  • With through-hole type of mounting
  • RoHS-compliant note on materials
  • Cast aluminium material sub-base
  • -5GC ambient temperature to 50GC ambient temperature

This product is an accessory for the following products:

Festo VSVA-B-B52-Z-D2-1T1L Solenoid Valve
Festo VSVA-B-B52-Z-D2-1T1L Solenoid Valve

Electric actuation type solenoid valve with Piston spool and 5/2-way valve, bistable.

$311.46
Festo VSVA-B-B52-ZD-D2-1T1L Solenoid Valve
Festo VSVA-B-B52-ZD-D2-1T1L Solenoid Valve

Electric actuation type solenoid valve with Piston spool and 5/2-way valve, bistable.

$313.89
Festo VSVA-B-D52-ZD-D2-1T1L Solenoid Valve
Festo VSVA-B-D52-ZD-D2-1T1L Solenoid Valve

Electric actuation type solenoid valve with Piston spool and 5/2-way valve, bistable, dominant signal.

$325.06
Festo VSVA-B-M52-AZ-D2-1T1L Solenoid Valve
Festo VSVA-B-M52-AZ-D2-1T1L Solenoid Valve

Electric actuation type solenoid valve with Piston spool and 5/2-way valve, monstable.

$243.27
Festo VSVA-B-M52-AZD-D2-1T1L Solenoid Valve
Festo VSVA-B-M52-AZD-D2-1T1L Solenoid Valve

Electric actuation type solenoid valve with Piston spool and 5/2-way valve, monstable.

$246.24
Festo VSVA-B-M52-AZH-D2-1T1L Solenoid Valve
Festo VSVA-B-M52-AZH-D2-1T1L Solenoid Valve

Electric actuation type solenoid valve with Piston spool and 5/2-way valve, monstable.

$243.27
Festo VSVA-B-M52-MZ-D2-1T1L Solenoid Valve
Festo VSVA-B-M52-MZ-D2-1T1L Solenoid Valve

Electric actuation type solenoid valve with Piston spool and 5/2-way valve, monstable.

$243.27
Festo VSVA-B-M52-MZD-D2-1T1L Solenoid Valve
Festo VSVA-B-M52-MZD-D2-1T1L Solenoid Valve

Electric actuation type solenoid valve with Piston spool and 5/2-way valve, monstable.

$246.24
Festo VSVA-B-M52-MZH-D2-1T1L Solenoid Valve
Festo VSVA-B-M52-MZH-D2-1T1L Solenoid Valve

Electric actuation type solenoid valve with Piston spool and 5/2-way valve, monstable.

$243.27
Festo VSVA-B-P53C-Z-D2-1T1L Solenoid Valve
Festo VSVA-B-P53C-Z-D2-1T1L Solenoid Valve

Electric actuation type solenoid valve with Piston spool and 5/3-way valve, mid-position closed.

$343.67
Festo VSVA-B-P53C-ZD-D2-1T1L Solenoid Valve
Festo VSVA-B-P53C-ZD-D2-1T1L Solenoid Valve

Electric actuation type solenoid valve with Piston spool and 5/3-way valve, mid-position closed.

$346.76
Festo VSVA-B-P53C-ZH-D2-1T1L Solenoid Valve
Festo VSVA-B-P53C-ZH-D2-1T1L Solenoid Valve

Electric actuation type solenoid valve with Piston spool and 5/3-way valve, mid-position closed.

$343.67
Festo VSVA-B-P53E-Z-D2-1T1L Solenoid Valve
Festo VSVA-B-P53E-Z-D2-1T1L Solenoid Valve

Electric actuation type solenoid valve with Piston spool and 5/3-way valve, mid-position exhausted.

$343.67
Festo VSVA-B-P53E-ZD-D2-1T1L Solenoid Valve
Festo VSVA-B-P53E-ZD-D2-1T1L Solenoid Valve

Electric actuation type solenoid valve with Piston spool and 5/3-way valve, mid-position exhausted.

$346.76
Festo VSVA-B-P53E-ZH-D2-1T1L Solenoid Valve
Festo VSVA-B-P53E-ZH-D2-1T1L Solenoid Valve

Electric actuation type solenoid valve with Piston spool and 5/3-way valve, mid-position exhausted.

$343.67
Festo VSVA-B-P53F-ZD-D2-1T1L Solenoid Valve
Festo VSVA-B-P53F-ZD-D2-1T1L Solenoid Valve

Electric actuation type solenoid valve with Piston spool and 5/3-way valve, mid-position port 2 pressurized, port 4 closed.

$437.08
Festo VSVA-B-P53U-ZD-D2-1T1L Solenoid Valve
Festo VSVA-B-P53U-ZD-D2-1T1L Solenoid Valve

Electric actuation type solenoid valve with Piston spool and 5/3-way valve, mid-position pressurized.

$346.76
Festo VSVA-B-T22C-AZD-D2-1T1L Solenoid Valve
Festo VSVA-B-T22C-AZD-D2-1T1L Solenoid Valve

Electric actuation type solenoid valve with Piston spool and 2x2/2-way valve, normally closed.

$325.06
Festo VSVA-B-T32C-AZ-D2-1T1L Solenoid Valve
Festo VSVA-B-T32C-AZ-D2-1T1L Solenoid Valve

Electric actuation type solenoid valve with Piston spool and 2x3/2-way valve, normally closed.

$322.39
Festo VSVA-B-T32C-AZD-D2-1T1L Solenoid Valve
Festo VSVA-B-T32C-AZD-D2-1T1L Solenoid Valve

Electric actuation type solenoid valve with Piston spool and 2x3/2-way valve, normally closed.

$325.06
Festo VSVA-B-T32F-AZD-D2-1T1L Solenoid Valve
Festo VSVA-B-T32F-AZD-D2-1T1L Solenoid Valve

Electric actuation type solenoid valve with Piston spool and 2x3/2-way valve, normally open, reversible.

$337.10
Festo VSVA-B-T32H-AZD-D2-1T1L Solenoid Valve
Festo VSVA-B-T32H-AZD-D2-1T1L Solenoid Valve

Electric actuation type solenoid valve with Piston spool and 2x3/2-way valve, 1x normally closed, 1x normally open.

$325.06
Festo VSVA-B-T32N-AZD-D2-1T1L Solenoid Valve
Festo VSVA-B-T32N-AZD-D2-1T1L Solenoid Valve

Electric actuation type solenoid valve with Piston spool and 2x3/2-way valve, normally closed, reversible.

$337.10
Festo VSVA-B-T32U-AZD-D2-1T1L Solenoid Valve
Festo VSVA-B-T32U-AZD-D2-1T1L Solenoid Valve

Electric actuation type solenoid valve with Piston spool and 2x3/2-way valve, normally open.

$325.06
Festo VSVA-B-T32W-AZD-D2-1T1L Solenoid Valve
Festo VSVA-B-T32W-AZD-D2-1T1L Solenoid Valve

Electric actuation type solenoid valve with Piston spool and 2x3/2-way valve, 1x normally closed, 1x normally open, reversible.

$337.10
