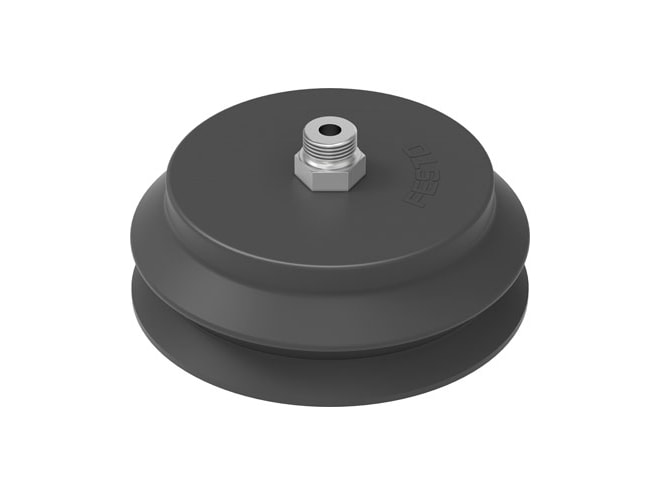

Festo VASB-125-3/8-NBR Suction Cup Complete

Features

• 7MM nominal size
• 125MM suction cup diameter
• 125MM effective suction diameter
• Top position of connection
• 991485 symbol
• Round bellows 1.5 convolutions suction cup shape
• -0.095MPA operating pressure
• 0MPA operating pressure
• -0.95BAR operating pressure
• 0BAR operating pressure
• -13.775PSI operating pressure
• 0PSI operating pressure
• -0.07MPA nominal operating pressure
• -0.7BAR nominal operating pressure
• -10.15PSI nominal operating pressure
• Atmospheric air based on ISO 8573-1:2010 [7:-:-] operating medium
• VDMA24364-A1-L lABS (PWIS) conformity
• 606N breakaway force at 70% vacuum
• 606N holding force at nominal operating pressure
• G3/8 mounting thread
• G3/8 suction cup mounting
• G3/8 vacuum connection
• Black colour
• 60 +/- 5 shore hardness
• Die-cast zinc material screwed plug
• RoHS-compliant note on materials
• NBR material suction cup
• -20GC ambient temperature to 80GC ambient temperature
