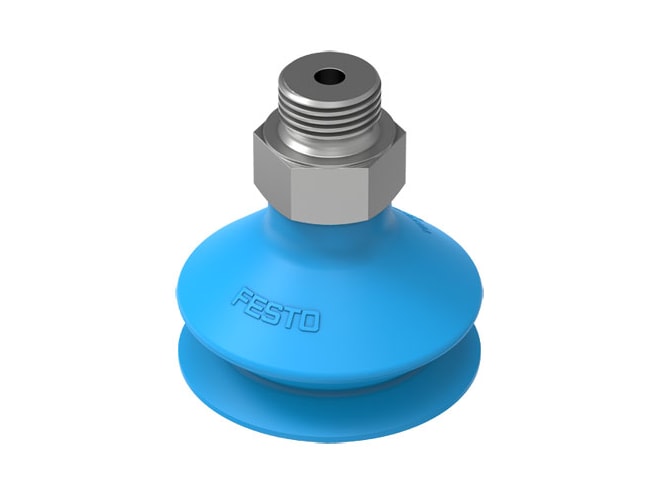

Festo VASB-40-1/4-PUR-B Suction Cup Complete

Features

• 13.7MM height compensator for suction cup
• 4MM nominal size
• 40MM suction cup diameter
• 11.11CCM suction cup volume
• 34.4MM effective suction diameter
• Top position of connection
• Optional mounting position
• 991485 symbol
• Round bellows 1.5 convolutions suction cup shape
• -0.095MPA operating pressure
• 0MPA operating pressure
• -0.95BAR operating pressure
• 0BAR operating pressure
• -13.775PSI operating pressure
• 0PSI operating pressure
• -0.07MPA nominal operating pressure
• -0.7BAR nominal operating pressure
• -10.15PSI nominal operating pressure
• Atmospheric air based on ISO 8573-1:2010 [7:-:-] operating medium
• 2 - Moderate corrosion stress corrosion resistance class cRC
• VDMA24364-A1-L lABS (PWIS) conformity
• 60N holding force at nominal operating pressure
• 30G product weight
• Via vacuum port type of mounting
• G1/4 vacuum connection
• Blue colour
• 60 +/- 5 shore hardness
• Die-cast zinc material screwed plug
• RoHS-compliant note on materials
• PUR material suction cup
• -20GC ambient temperature to 60GC ambient temperature
