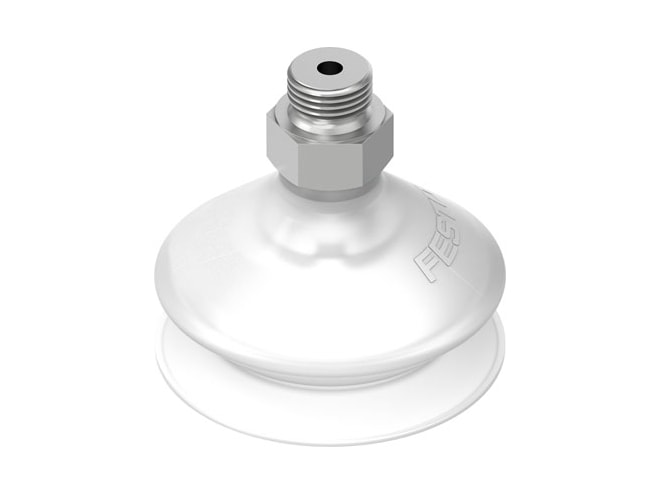

Festo VASB-55-1/4-SI-B Suction Cup Complete

Features

• 20MM height compensator for suction cup
• 4MM nominal size
• 55MM suction cup diameter
• 30.4CCM suction cup volume
• Top position of connection
• Optional mounting position
• 991485 symbol
• Round bellows 1.5 convolutions suction cup shape
• -0.095MPA operating pressure
• 0MPA operating pressure
• -0.95BAR operating pressure
• 0BAR operating pressure
• -13.775PSI operating pressure
• 0PSI operating pressure
• -0.07MPA nominal operating pressure
• -0.7BAR nominal operating pressure
• -10.15PSI nominal operating pressure
• Atmospheric air based on ISO 8573-1:2010 [7:-:-] operating medium
• 2 - Moderate corrosion stress corrosion resistance class cRC
• VDMA24364 zone III lABS (PWIS) conformity
• See supplementary material information suitable for use with food
• 110N holding force at nominal operating pressure
• 29G product weight
• Via vacuum port type of mounting
• G1/4 vacuum connection
• Transparent colour
• 60 +/- 5 shore hardness
• Wrought aluminium alloy material screwed plug
• RoHS-compliant note on materials
• VMQ (silicone) material suction cup
• -40GC ambient temperature to 200GC ambient temperature
