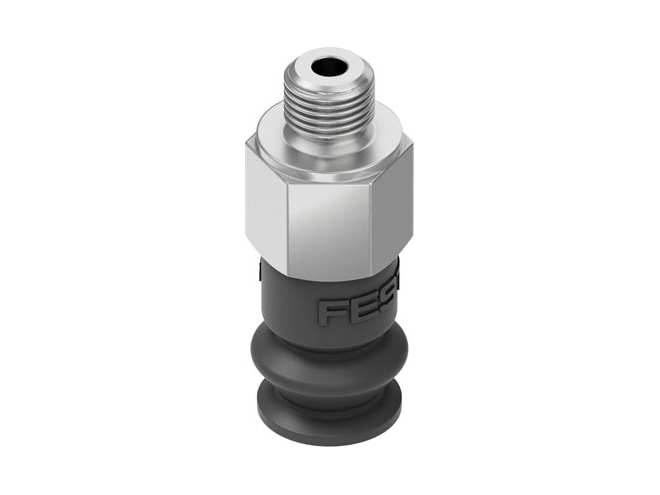

Festo VASB-8-M5-NBR Suction Cup Complete

Features

• 2MM nominal size
• 8MM suction cup diameter
• 5.5MM effective suction diameter
• Top position of connection
• 991485 symbol
• Round bellows 1.5 convolutions suction cup shape
• -0.095MPA operating pressure
• 0MPA operating pressure
• -0.95BAR operating pressure
• 0BAR operating pressure
• -13.775PSI operating pressure
• 0PSI operating pressure
• -0.07MPA nominal operating pressure
• -0.7BAR nominal operating pressure
• -10.15PSI nominal operating pressure
• Atmospheric air based on ISO 8573-1:2010 [7:-:-] operating medium
• VDMA24364-A1-L lABS (PWIS) conformity
• 1.6N breakaway force at 70% vacuum
• 1.6N holding force at nominal operating pressure
• M5 mounting thread
• M5 suction cup mounting
• M5 vacuum connection
• Black colour
• 60 +/- 5 shore hardness
• Brass material screwed plug
• RoHS-compliant note on materials
• NBR material suction cup
• -20GC ambient temperature to 80GC ambient temperature
