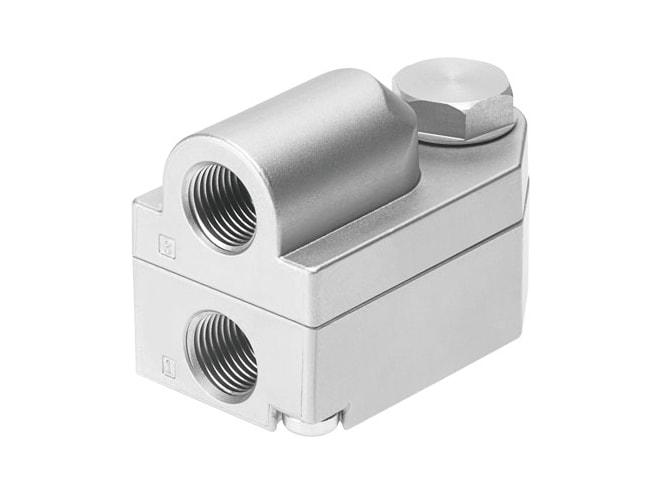

Festo VBQF Series Quick Exhaust Valve

Flat, screw-in exhaust air control with calibrated noise emission.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 0.2 to 10bar pressure range
  • Up to 2,500l/min standard nominal flow rate
  • Screw-in mounting type
  • 75 dB(A) sound pressure level
  • Operating medium: compressed air to ISO 8573-1:2010 [7:4:4]
  • Lubricated operation possible (in which case lubricated operation will always be required)
  • Die-cast aluminum, die-cast zinc material housing
  • NBR seals
  • RoHS-compliant

The Festo VBQF Series Quick Exhaust Valve can be used to achieve higher piston speeds during the return stroke of single-acting and double-acting drives. The compressed air flows from the control valve to the drive via the VBQF. When the pressure at port 1 drops, exhaust flow is from port 2 to port 3.

In order to enable quick and complete exhausting, the VBQF must be mounted directly on the supply port of the drive. The VBQF can be mounted in any position and can also be turned during installation (however, continuous rotation of the connection during operation must be avoided).
