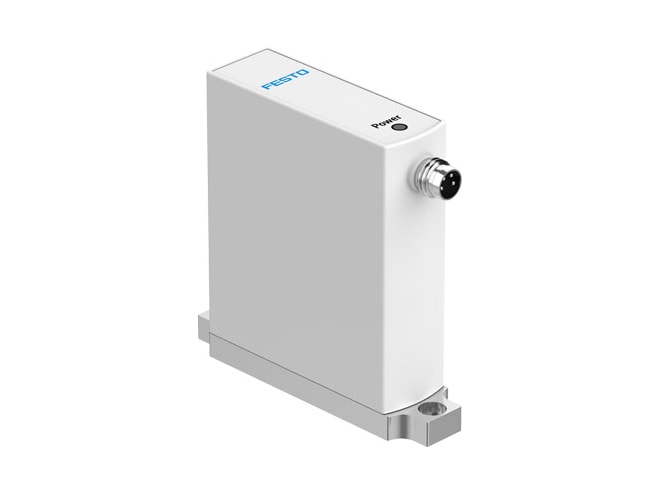

Festo VEAB Series Proportional-Pressure Regulator

For pressure ranges up to 6bar; sustainable operation due to lower pressure level and efficient control.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open 8:00 am to 5:30 pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • Vacuum to 6bar pressure range options
  • 3-way proportional-pressure regulator
  • 2x2/2-way valve, normally closed
  • Push-in 4mm connector or Flange/via sub-base pneumatic port
  • Available as in-line or sub-base valve
  • Setpoint input options for individual valves:
    • 4 to 20mA
    • 0 to 10V
    • 0 to 5V
  • 24VDC nominal operating voltage
  • Individual connector M8, 4-pin electrical connection

The Festo VEAB Series Proportional-Pressure Regulator includes piezo technology for heightened precision and long service life, and an integrated pressure sensor with separate output. Diagnostics include operating voltage (over and undervoltage) and setpoint value (falling below and exceeding). Mounting the in-line valve is achieved via three lateral through-holes, and the VEAB can be securely mounted to a wall or H-rail.
