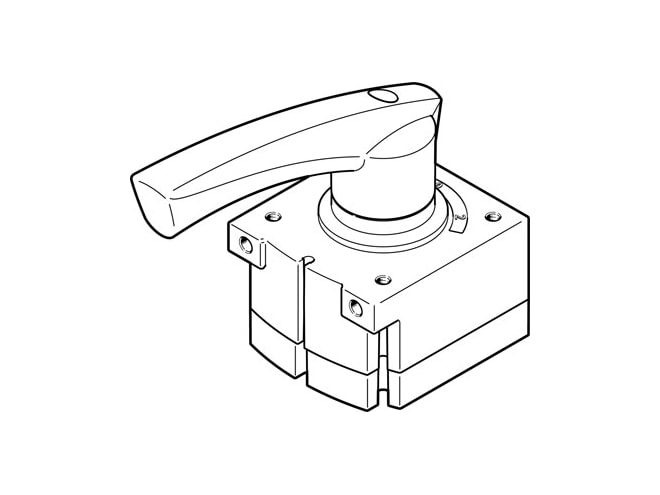

Festo VHER Series Hand Lever Valve

Flow rate 170 to 3,800l/min.

This model has 50 variants.
Highlights...

Features

  • 4/3-way valve; mid-position closed, exhausted, or pressurized
    • Can be used as a 3/3-2ay valve by sealing port 2
  • Connection direction on the side or underneath
  • Polymer version available
  • Connection options:
    • 1/8 NPT
    • 1/4 NPT
    • 1/2 NPT
    • G1/8
    • G1/4
    • G1/2
    • M5

The Festo VHER Series Hand Lever Valve makes it possible to stop single-acting cylinders (3/3-way valve) or double-acting cylinders (4/3-way valve) within the stroke range. With mid-position closed, the drive piston moves until the forces are in equilibrium. With mid-position exhausted the piston can be moved manually; only the frictional forces have to be overcome. In the mid-position exhausting, the same pressure is applied to port 2 and 4. The piston is not moved (with the same surface areas).
