Festo VLX Series Pneumatic Valve

Diaphragm control; 2,400 to 14,000l/min standard nominal flow rate.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 1 to 10bar operating pressure
  • 2/2-way valve, normally closed
  • NBR sealant
  • 13, 20, or 25 nominal width DN
  • In-line installation mounting
  • Pneumatic actuation type
  • Piloted control type
  • Pneumatic spring reset method
  • Any mounting position
  • Soft sealing principle

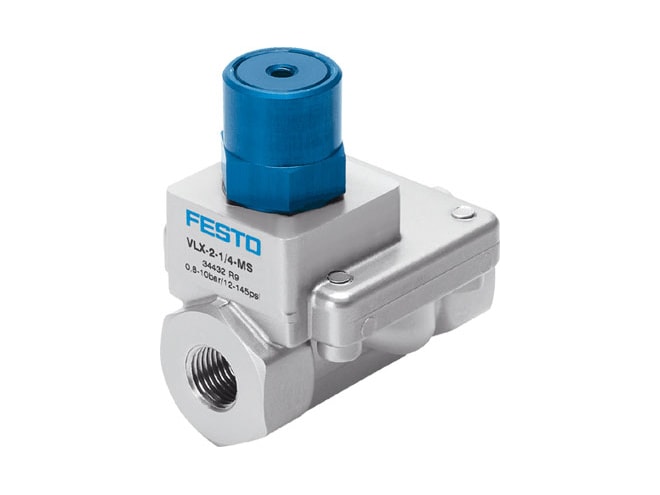

The Festo VLX Series Pneumatic Valve is an indirectly actuated poppet valve, with a brass design made for in-line mounting.
