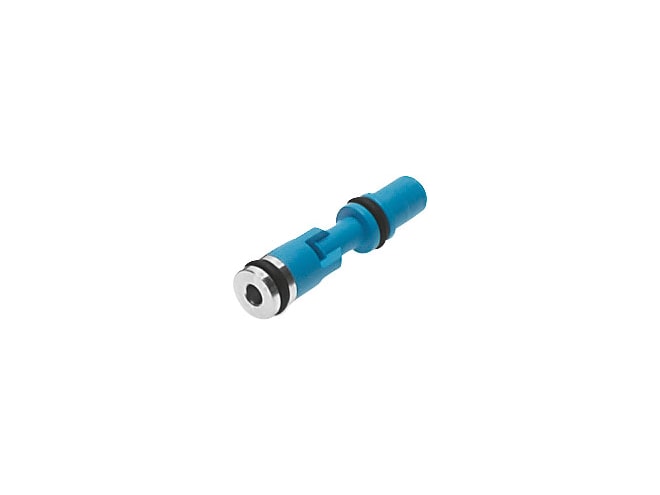

Festo VN Series Vacuum Generator Cartridge

For fitting into customized housing for decentralized vacuum generation.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 0.45 to 2.0mm nominal width of Laval nozzle
  • Ejector characteristic:
    • High vacuum/standard H
    • High suction rate/ standard L
  • Any mounting position
  • 1 to 8bar operating pressure
  • 6bar nominal operating pressure
  • Corrosion resistance class CRC 2

The Festo VN Series Vacuum Generator Cartridge can be inserted by drilling one hole in the machine and inserting the frameless generator. The cartridge is available with a high vacuum or high suction rate, and operates a compressed air medium to ISO 8573-1:2010 [7:4:4]. All Festo vacuum generators have a single-stage design and operate according to the Venturi principle. Vacuum is generated by a Laval nozzle.

Part Number Price Available
VN-05-L
Show Configuration
$169.00 4 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
