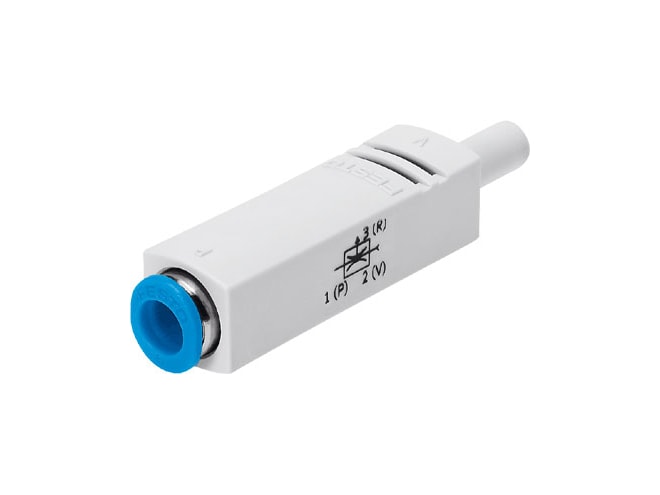

Festo VN-05-M-I2-PQ1-VT1 Vacuum Generator

Pneumatic vacuum generator with 0.45mm width Laval nozzle and High vacuum/inline ejector characteristics for lithium-ion battery production. View other configurations.

$47.54
Part Numbers
  • VN-05-M-I2-PQ1-VT1
  • 193587
Highlights...

Features

  • 0.45MM nominal size, laval nozzle
  • 10MM grid dimension
  • Optional mounting position
  • High vacuum ejector characteristic
  • Inline ejector characteristic
  • Straight shape design
  • 991491 symbol
  • 6.3BAR operating pressure for max. suction flow rate
  • 1BAR operating pressure
  • 8BAR operating pressure
  • 6BAR operating pressure for max. vacuum
  • 86% max. vacuum
  • 6BAR nominal operating pressure
  • 6.1L2 max. suction flow rate against atmosphere
  • 4.7S air supply time at nominal operating pressure
  • Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
  • Lubricated operation not possible note on operating and pilot medium
  • 1 - Low corrosion stress corrosion resistance class cRC
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • 0GC media temperature
  • 60GC media temperature
  • 8G product weight
  • In-line installation type of mounting
  • Push-in sleeve QS-4 vacuum connection
  • RoHS-compliant note on materials
  • NBR material seals
  • POM material receiver nozzle
  • POM-reinforced material housing
  • Wrought aluminium alloy material transmitter nozzle
  • Brass material fitting
  • Nickel-plated material fitting
  • 0GC ambient temperature to 60GC ambient temperature
  • Pneumatic connection qS-4 , port 1
  • Pneumatic connection not ducted , port 3
