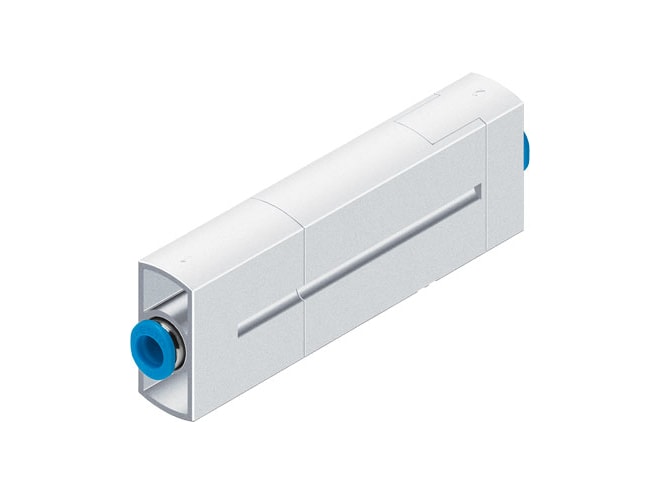

Festo VN-05-N-I3-PQ2-VQ2-A Vacuum Generator

Pneumatic vacuum generator with 0.45mm width Laval nozzle and High suction rate/inline ejector characteristics for lithium-ion battery production. View other configurations.

$101.91
Part Numbers
  • VN-05-N-I3-PQ2-VQ2-A
  • 532625
Highlights...

Features

  • 0.45MM nominal size, laval nozzle
  • 14.5MM grid dimension
  • Optional mounting position
  • Inline ejector characteristic
  • High suction volume ejector characteristic
  • Ejector pulse valve, pneumatic integrated function
  • Straight shape design
  • 991484 symbol
  • 5BAR operating pressure for max. suction flow rate
  • 1BAR operating pressure
  • 8BAR operating pressure
  • 6BAR nominal operating pressure
  • 13.3L2 max. suction flow rate against atmosphere
  • 2.24S air supply time at nominal operating pressure
  • Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
  • Lubricated operation not possible note on operating and pilot medium
  • 1 - Low corrosion stress corrosion resistance class cRC
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • 0GC media temperature
  • 60GC media temperature
  • Soapy water recommended cleaning/purification
  • 68DBA sound pressure level at nominal operating pressure
  • 38G product weight
  • In-line installation type of mounting
  • QS-6 vacuum connection
  • Anodised wrought aluminium alloy material connecting thread
  • RoHS-compliant note on materials
  • NBR material seals
  • POM material receiver nozzle
  • PA-reinforced material housing
  • POM-reinforced material housing
  • Steel material screws
  • Wrought aluminium alloy material transmitter nozzle
  • Brass material fitting
  • Nickel-plated material fitting
  • 0GC ambient temperature to 60GC ambient temperature
  • Pneumatic connection qS-6 , port 1
