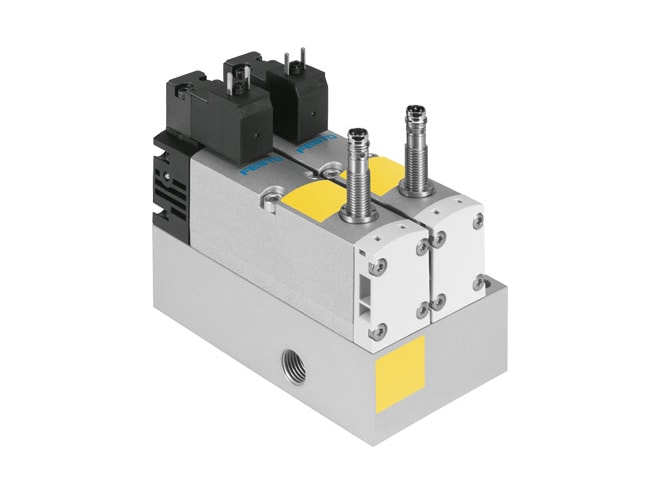

Festo VOFA Series Control Block

Redundantly designed for safe reversing of a hazardous movement or for safe venting of pneumatic drives.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 830 to 1,050 l/min standard nominal flow rate
  • Piston spool valve design
  • Mechanical spring reset method
  • Conforms to EN 13849-1
  • Equipped with VSVA pneumatic valves
  • Switching position sensing
  • Suitable for use as a press safety valve in accordance with ISO 16092-4
  • Soft sealing principle
  • Exhaust function can be throttled

The Festo VOFA Series Control Block can be selected as a decentralized individual connection variant with electrical and pneumatic individual connection or as a feature integrated in the valve manifold VTSA/VTSA-F. The control block is purely mechanical, and can be used as a press safety valve to ISO 16092-4 and EU directive 2006/42/EC (Machinery Directive).
