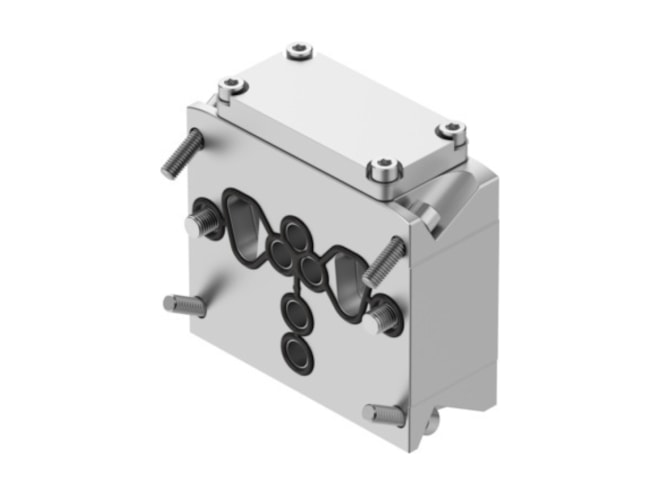

Festo VOGI-F100FS-T32H-M-F90 Pneumatic Valve

Features

• Structural design: Sub base valve
• Structural design: Pilot-controlled piston poppet valve
• Pneumatic Actuation type
• Soft Sealing principle
• With accessories mounting position
• 4/2, monostable Fail safe Valve function
• Double-acting Mode of operation
• 0.33 MPa ... 0.8 MPa Operating pressure
• 3.3 bar ... 8 bar Operating pressure
• 47.85 psi ... 116 psi Operating pressure
• Mechanical spring Reset method
• Sub-base design, airing Pneumatic connection
• G1/2 Pneumatic connection 1
• Compressed air as per ISO 8573-1:2010 [7:7:-]
• Operation with oil lubrication not possible
• -20 °C ... 80 °C Temperature of medium
• -20 °C ... 80 °C Ambient temperature
• 1093 l/min Standard nominal flow rate
• RoHS-compliant Note on materials
• VDMA24364 zone III LABS (PWIS) conformity
• Smooth-anodized wrought aluminum alloy (20 μm) Housing material
• Smooth-anodized wrought aluminum alloy (20 μm) Cover material
• EPDM NBR Seals material
• High-alloy stainless steel Material of screws
• Spring steel Material of spring
• 880 g Product weight
• Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) Explosion prevention and protection
• Corrosion resistance class (CRC) 3 - High corrosion stress
