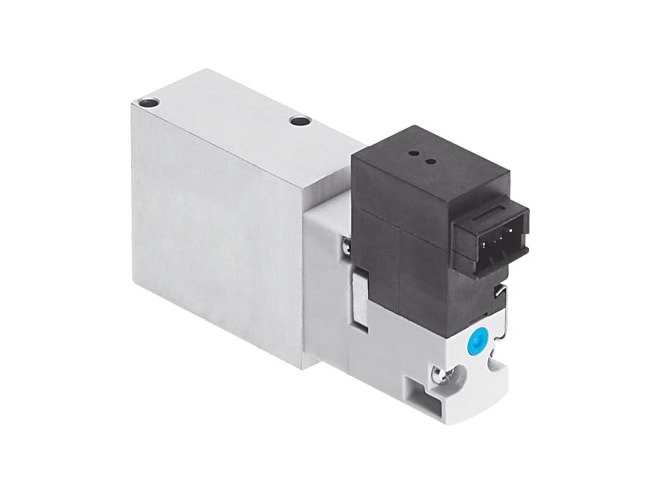

Festo VOVG Series Solenoid Valve

Sub-base, semi-inline, or in-line valve type with piston spool design.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open 8:00 am to 5:30 pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 180 to 200l/min flow rate
  • -0.9 to 8bar pressure range
  • Valve function:
    • 3/2-way, closed, single solenoid
    • 3/2-way, open, single solenoid
    • 5/2-way, single solenoid
  • Positive overlap
  • Soft sealing principle
  • Electrical actuation
  • 10 or 12mm width/size
  • 2.1mm nominal width
  • Compressed air to ISO 8573-1:2010 [7:4:4] operating and pilot medium
  • Lubricated operation possible (in which case lubricated operation will always be required)

The Festo VOVG Series Solenoid Valve is designed for solutions with extremely compact assembly. It is meant for use with soft-start/quick exhaust valves MS6-SV, MS series.
