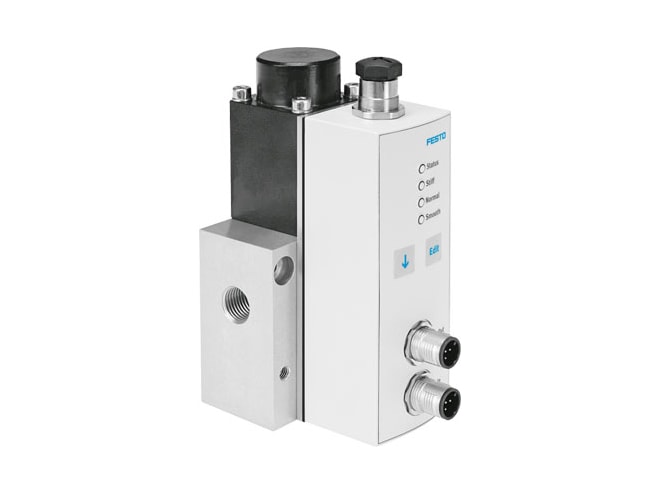

Festo VPPL Series Proportional-Pressure Regulator

Directly actuated piston regulating valve for high-pressure applications.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 0.2 to 40bar pressure regulation range
  • Max. pressure hysteresis
    • 0.01 or 0.04MPa
    • 0.1 or 0.4bar
    • 1.45 or 5.8psi
  • 3.0mm nominal size pressurization/exhaust
  • Electrical actuation type
  • Directly actuated piston regulator design
  • Mounting with through-hole
  • Any mounting position, preferably upright
  • 3-way proportional pressure regulator valve function, closed
  • Exhaust air cannot be throttled
  • Mechanical spring reset method
  • Direct control type
  • Soft sealing principle

The Festo VPPL Series Proportional-Pressure Regulator is designed for higher pressures from 10 to 40bar. As an individual device with threaded connections, the valve can be used in a variety of applications, including in stretch blow molding of PET bottles in the food and beverage industry, or on tire or brake test benches in the automotive industry.

The VPPL is available in three variants: flanged valve, flanged valve with external pilot air supply, or in-line valve.
