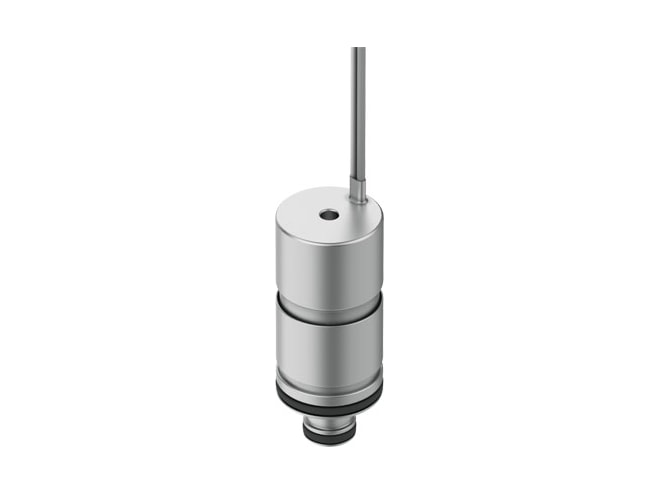

Festo VPWS-6-B-6-PC15-3-V Proportional Directional Control Valve

Subbase directional control valve with 15mm cartridge pneumatic connection and 6mm width and 0 to 3bar pressure range. View other configurations.

$272.75
Part Numbers
  • VPWS-6-B-6-PC15-3-V
  • 8074537
Highlights...

Features

  • 6MM nominal size
  • Electric type of actuation
  • Soft sealing principle
  • Optional mounting position
  • Directly actuated poppet valve design
  • Mechanical spring type of reset
  • Direct type of piloting
  • Non-reversible flow direction
  • 995953 symbol
  • 2/2 proportional directional control valve, closed valve function
  • 0MPA operating pressure
  • 0.3MPA operating pressure
  • 0BAR operating pressure
  • 3BAR operating pressure
  • 0.2MPA nominal operating pressure
  • 2BAR nominal operating pressure
  • 29PSI nominal operating pressure
  • 1.5BAR burst pressure
  • 15BAR burst pressure
  • 217.5PSI burst pressure
  • 200L2 standard flow rate
  • 220L2 standard flow rate
  • 22.5MA hysteresis
  • 10MS switching time on
  • 0MA current regulating range
  • 225MA current regulating range
  • 3W max. electrical power consumption
  • 60.5OHM coil resistance r20
  • 100% (see assembly instructions) duty cycle
  • ISO 15001 report surface cleanliness according to standard
  • 500MGM maximum impurity level for hydrocarbons
  • 1 - Low corrosion stress corrosion resistance class cRC
  • VDMA24364 zone III lABS (PWIS) conformity
  • Inert gases medium
  • Air medium
  • Oxygen medium
  • Lubricated operation not possible note on the medium
  • Maximum particle size 10 µm note on the medium
  • 5GC media temperature
  • 50GC media temperature
  • IP60 degree of protection
  • IP65 with suitable plug note on degree of protection
  • In assembled state note on degree of protection
  • 25G product weight
  • Cable electrical connection 1, connection type
  • Open end electrical connection 1, connector system
  • 2 electrical connection 1, number of connections/cores
  • 0.07MM cable length
  • 0.08MM cable length
  • On sub-base type of mounting
  • Plug-in type of mounting
  • With accessories type of mounting
  • RoHS-compliant note on materials
  • FPM material seals
  • High-alloy steel material housing
  • 5GC ambient temperature to 50GC ambient temperature
  • -40GC to 80GC storage temperature
  • Pneumatic connection cartridge 7.5 mm , port 1
  • Pneumatic connection cartridge 15 mm , port 2
