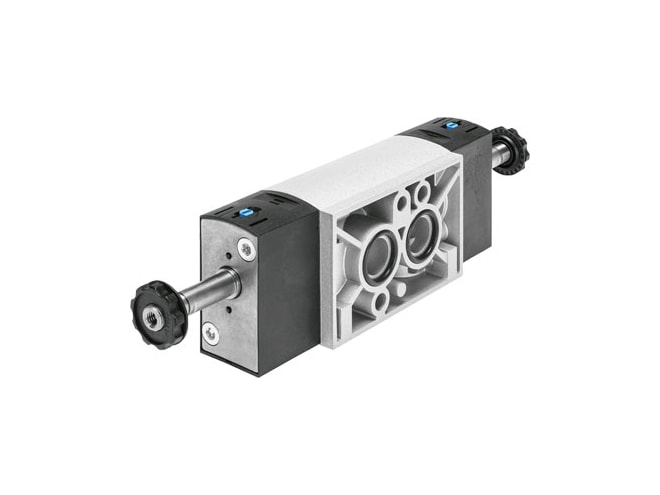

Festo VSNC Series Solenoid Valve

NAMUR port pattern for solenoid valves to VDI/VDE 3845.

This model has 89 variants.
Highlights...

Features

  • 800 to 1,350 l/min standard nominal flow rate
  • 1 to 10bar operating pressure
  • Rotatable seal for 3/2 - or 5/2-way valve
  • Enables single- or double-acting actuators to be controlled with one valve
  • Poppet valve or piston slide design principle
  • One armature tube system for all Ex solenoid systems
  • For zone 1 to IEC Ex with type of ignition protection
  • Wide choice of EX solenoid systems
  • All solenoid coils can be used on an armature tube

The Festo VSNC Series Solenoid Valve is certified in accordance with the most common explosion stands. The VSNC is a pilot valve for single- and double-acting quarter turn and linear actuators with a port pattern in accordance with VDI/VDE 3845, such as DAPS, DFPB, and DLP. It can also be mounted on actuators without a NAMUR interface, e.g. diaphragm actuators, thanks to appropriate accessories such as a connection set.

The VSNC is designed for the requirements of process automation. A mechanical spring (single solenoid valves) ensures safe switching to the initial position in the event of a power failure. Working ports 2, 4 on valves VSNC-F...-P2 are designed in accordance with VDI/VDE 3845 NAMUR.

Part Number Price Available
VSNC 170899 Series
Show Configuration
$89.20 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
