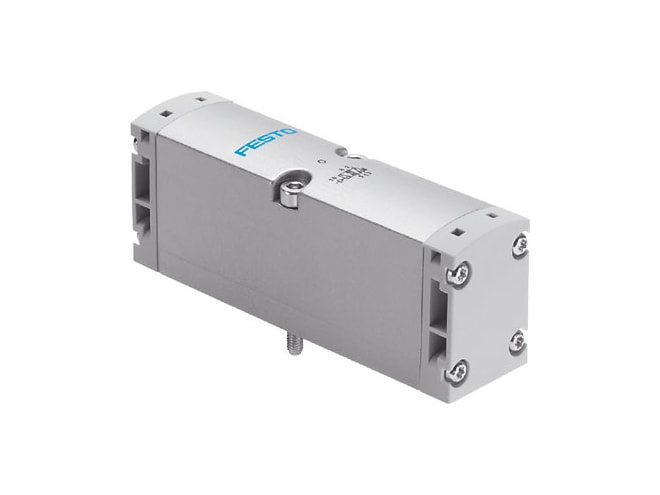

Festo VSPA Series Pneumatic Valve

Pneumatic actuation, ISO valve to ISO 15407-1.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 400 to 1,100 l/min standard nominal flow rate
  • Subbase directional control valve type
  • 0 to 16bar operating pressure
  • 18 or 26mm pneumatic connection
  • Manifold assembly with mixed sizes possible

The Festo VSPA Series Pneumatic Valve provides an individual electrical connection via square or round plug sockets. Valves can be replaced under pressure using a vertical pressure shut-off plate. The VSPA is a modular system offering a range of configuration options, with conversions and extensions possible at any time. Innovative functional modules can be integrated, including a regulator plate, throttle plate, vertical pressure shut-off plate, and vertical supply plate. Vertical supply plates permit a flexible air supply and variable pressure zones.

Fast troubleshooting is provided by LEDs in the plug socket, illuminating seal, or the valve. Valves can be replaced quickly and easily, and the piston spool valves provide added durability.
