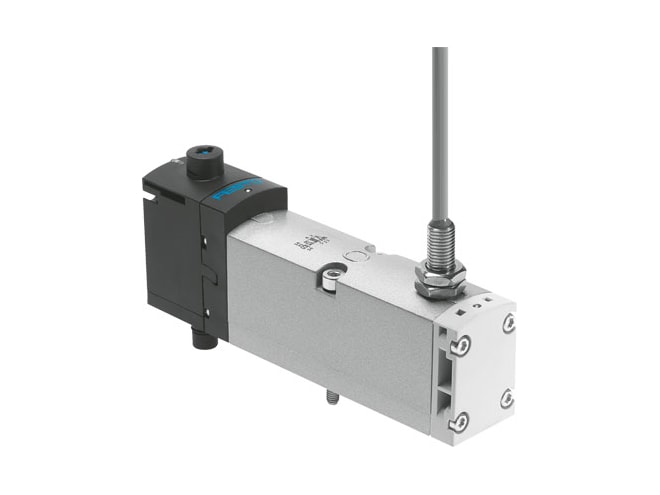

Festo VSVA-B-M52-MZD-A1-1T1L-ANC Solenoid Valve

Features

• 5/2-way, monostable valve function
• Electric type of actuation
• 26MM construction width
• 1100L2 standard nominal flow rate
• -0.09MPA operating pressure
• 1MPA operating pressure
• -0.9BAR operating pressure
• 10BAR operating pressure
• Piston gate valve design
• Mechanical spring type of reset
• KC-EMV kC mark
• To EU EMC Directive cE mark (see declaration of conformity)
• To UK instructions for EMC cE marking (see declaration of conformity)
• IP65 degree of protection
• NEMA 4 degree of protection
• 9MM nominal size
• With flow control option exhaust-air function
• Via throttle plate exhaust-air function
• Via individual sub-base exhaust-air function
• Soft sealing principle
• Optional mounting position
• Detenting manual override
• Non-detenting manual override
• Covered manual override
• Pilot actuated type of piloting
• External pilot air supply
• Internal pilot air supply
• Optional flow direction
• 997391 symbol
• Inductive measuring principle
• Overlap lap
• For all electrical connections reverse polarity protection sensor
• LED signal status display
• Normal position via sensor switching position sensing
• LED switching status display sensor
• 0.3MPA pilot pressure
• 1MPA pilot pressure
• 3BAR pilot pressure
• 10BAR pilot pressure
• 1400L2 flow rate of valve
• 1200L2 flow rate of valve on individual sub-base
• 1350L2 valve flow rate, pneumatically linked, flow optimized
• 1100L2 flow rate of pneumatically interlinked valve
• 54MS switching time off
• 20MS switching time on
• 60MS valve - sensor switching time on
• 11MS valve - sensor switching time off
• 100% duty cycle
• 1200MIS max. positive test pulse with 0 signal
• 1100MIS max. negative test pulse with 1 signal
• 24V nominal operating voltage dC
• NPN switching output
• 24 V DC: 1.6 W characteristic coil data
• 2.5KV immunity to surge
• 3 pollution degree
• +/- 10 % permissible voltage fluctuations
• Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
• Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
• Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 vibration resistance
• Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 shock resistance
• 0 - No corrosion stress corrosion resistance class cRC
• VDMA24364-B1/B2-L lABS (PWIS) conformity
• -5GC media temperature
• 50GC media temperature
• 0 - 90% relative air humidity
• 85DBA sound pressure level
• 1.8NM max. tightening torque for valve mounting
• 2.2NM max. tightening torque for valve mounting
• 307G product weight
• Pulsed short-circuit strength sensor
• 10MA idle current sensor
• 200MA max. output current sensor
• 5000HZ max. switching frequency sensor
• ± 10% residual ripple sensor
• 2V voltage drop sensor
• 4-pin electrical connection
• Plugs electrical connection
• To ISO 15407-2 electrical connection
• Cable sensor connection
• 2.5 m sensor connection
• On sub-base type of mounting
• Sub-base size 26 mm to ISO 15407-2 pilot air port 12/14
• Ducted pilot exhaust port 82/84
• Not ducted pilot exhaust port 82/84
• Either: pilot exhaust port 82/84
• RoHS-compliant note on materials
• FPM material seals
• NBR material seals
• Die-cast aluminium material housing
• PA material housing
• Galvanised steel material screws
• N/C contact switching element function
• -5GC ambient temperature to 50GC ambient temperature
• 10 to 30V operating voltage range, DC sensor
• Pneumatic connection sub-base size 26 mm to ISO 15407-2 , port 1
• Pneumatic connection sub-base size 26 mm to ISO 15407-2 , port 2
• Pneumatic connection sub-base size 26 mm to ISO 15407-2 , port 3
• Pneumatic connection sub-base size 26 mm to ISO 15407-2 , port 4
• Pneumatic connection sub-base size 26 mm to ISO 15407-2 , port 5
