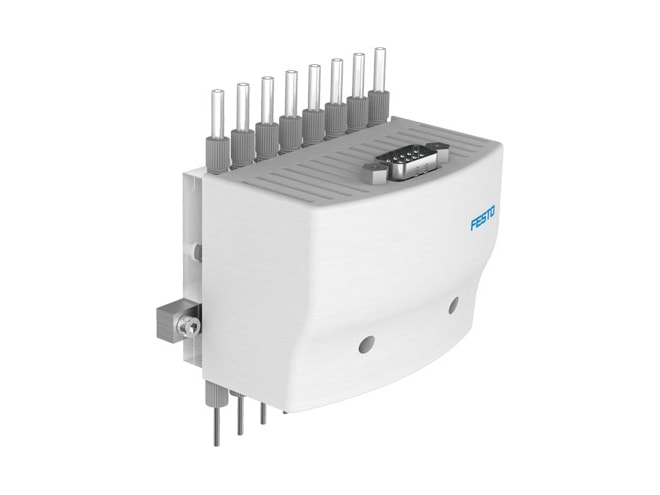

Festo VTOE Series Dispense Head

Compact 9mm grid dimension; ready-to-install dosing solution.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open 8:00 am to 5:30 pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 1 or 8 valve positions
  • Nozzle output connection, 30mm length, 0.32 to 1mm nom. size
  • 3mm input connection for tubing
  • 0.8mm nominal width
  • Dosing precision down to the microliter range
  • Ideally suited to non-contact dispensing and jetting of liquid media
  • Dosing valve isolated from the media, for sensitive and aggressive liquid media
  • Small internal volume for easy rinsing

The Festo VTOE Series Dispense Head is available in two different variants:

  • With transparent manifold duct plate made from polycarbonate (PC)
  • With media-resistant manifold duct plate made from polyether ether ketone (PEEK)

Both variants offer three different dosing syringes with three different internal diameters as standard.

The dispense head VTOE is intended for installation in laboratory devices. It is designed to dispense liquids within the scope of its technical data. The chemical resistance of the dispense head materials coming into contact with the media must be checked for each application. It is necessary to verify the extent to which the dispense head VTOE is suitable for the intended application.

The dispense head is not suitable for aspiration of liquids. It is not approved for direct contact with foodstuffs or their ingredients.
