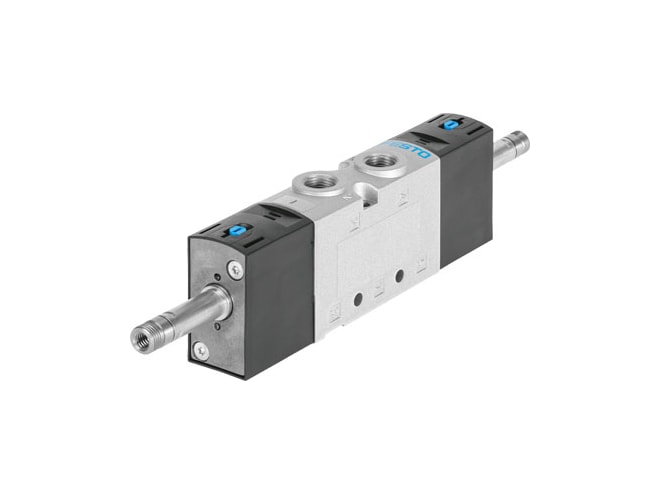

Festo VUVS Series Solenoid Valve

Name: Festo VUVS Series Solenoid Valve
Price: 63.1 USD
Availability: InStock

1,800 to 2,300 l/min max. flow rate with wide range of valve functions.

Select your options below…

"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.

Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.

Request pricing below.

${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)

Configured Part No. {{ calcPartNumber }}

About This Configuration

Alternate Part Nos. {{pn}}
{{pn}}

Request Quick Quote

Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

Highlights...

By Festo
FREE Shipping on orders of $1,000 or more
FREE Lifetime Tech Support
Some models in stock. View available part numbers.

Features

21mm valve width
5.2mm nominal width (diameter)
550l/min standard nominal flow rate qnN
0.38 b value
2.66l/sbar c value
Piston spool design
Non-reversible flow direction
Internal pilot air supply
Piloted control type
Non-detenting, detenting manual override
Positive overlap
Soft sealing principle
Optional mounting via through-hole or on manifold rail; any position
Electric actuation type
Exhaust air function can be throttled

The Festo VUVS Series Solenoid Valve is attached to the manifold block using two screws. The appropriate seal is mounted on the valve, meaning the valve can be easily replaced. Valve positions covered with cover plates can be replaced with valves at a later date. The dimensions, mounting points and existing pneumatic installation remain unchanged. Extension modules with two valve positions are available for the standard manifold block. A manifold block can be extended with a maximum of three extension modules.

Spec Sheets

Festo VUVS Series Solenoid Valve datasheet (8.2 MB)

Links

All possible part numbers

Part Number	Price	Available
VUVS-L20-B52-D-G18-F7-1C1 Show Configuration	$107.37	5 in stock
VUVS-LT30-M32C-MZD-G38-F8-1C1 Show Configuration	$129.72	5 in stock
VUVS-L25-B52-D-N14-F8 Show Configuration	$94.09	3 in stock
VUVS-L20-M32C-AD-G18-F7-1C1 Show Configuration	$72.47	2 in stock
VUVS-L20-P53E-MD-N18-F7 Show Configuration	$100.24	1 in stock
VUVS-L30-M32C-MZD-G38-F8-1B2 Show Configuration	$88.49	1 in stock

Base Price:: $0.00
Design Principle: Piston spool
Size: Size 20
Valve Function: 5/2-way valve, double solenoid/bistable
Reset Method for Monostable/Single Solenoid Valves: None
Pilot Air: Internal
Manual Override: Non-detenting, detenting
Pneumatic Connection: G1/8
Exhaust: No fitting
Valve Pilot Control Interface: With armature tube 8mm, short
Nominal Operating Voltage: 24VDC
Electrical Connection: Connection pattern type C, to EN 175 301
Degree of Protection, Electrical System: Standard
EU Certification: None
Electrical Valve Accessories: None
Version: Expanded properties

Reconfigure

Base Price:: $0.00
Design Principle: Poppet valve
Size: Size 30
Valve Function: 3/2-way valve, normally closed
Reset Method for Monostable/Single Solenoid Valves: Mechanical spring
Pilot Air: External
Manual Override: Non-detenting, detenting
Pneumatic Connection: G3/8
Exhaust: No fitting
Valve Pilot Control Interface: With armature tube 8mm, long
Nominal Operating Voltage: 24VDC
Electrical Connection: Connection pattern type C, to EN 175 301
Degree of Protection, Electrical System: Standard
EU Certification: None
Electrical Valve Accessories: None
Version: Expanded properties

Reconfigure

Base Price:: $0.00
Design Principle: Piston spool
Size: Size 25
Valve Function: 5/2-way valve, double solenoid/bistable
Reset Method for Monostable/Single Solenoid Valves: None
Pilot Air: Internal
Manual Override: Non-detenting, detenting
Pneumatic Connection: 1/4 NPT
Exhaust: No fitting
Valve Pilot Control Interface: With armature tube 8mm, long
Nominal Operating Voltage: None
Electrical Connection: None
Degree of Protection, Electrical System: Standard
EU Certification: None
Electrical Valve Accessories: None
Version: Expanded properties

Reconfigure

Base Price:: $0.00
Design Principle: Piston spool
Size: Size 20
Valve Function: 3/2-way valve, normally closed
Reset Method for Monostable/Single Solenoid Valves: Pneumatic spring
Pilot Air: Internal
Manual Override: Non-detenting, detenting
Pneumatic Connection: G1/8
Exhaust: No fitting
Valve Pilot Control Interface: With armature tube 8mm, short
Nominal Operating Voltage: 24VDC
Electrical Connection: Connection pattern type C, to EN 175 301
Degree of Protection, Electrical System: Standard
EU Certification: None
Electrical Valve Accessories: None
Version: Expanded properties

Reconfigure

Base Price:: $0.00
Design Principle: Piston spool
Size: Size 20
Valve Function: 5/2-way valve, mid-position exhausted
Reset Method for Monostable/Single Solenoid Valves: Mechanical spring
Pilot Air: Internal
Manual Override: Non-detenting, detenting
Pneumatic Connection: 1/8 NPT
Exhaust: No fitting
Valve Pilot Control Interface: With armature tube 8mm, short
Nominal Operating Voltage: None
Electrical Connection: None
Degree of Protection, Electrical System: Standard
EU Certification: None
Electrical Valve Accessories: None
Version: Expanded properties

Reconfigure

Base Price:: $0.00
Design Principle: Piston spool
Size: Size 30
Valve Function: 3/2-way valve, normally closed
Reset Method for Monostable/Single Solenoid Valves: Mechanical spring
Pilot Air: External
Manual Override: Non-detenting, detenting
Pneumatic Connection: G3/8
Exhaust: No fitting
Valve Pilot Control Interface: With armature tube 8mm, long
Nominal Operating Voltage: 24VDC
Electrical Connection: Connection pattern type B, industry standard
Degree of Protection, Electrical System: Standard
EU Certification: None
Electrical Valve Accessories: None
Version: Expanded properties

Reconfigure

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 7-10 business days". Click here to select options
