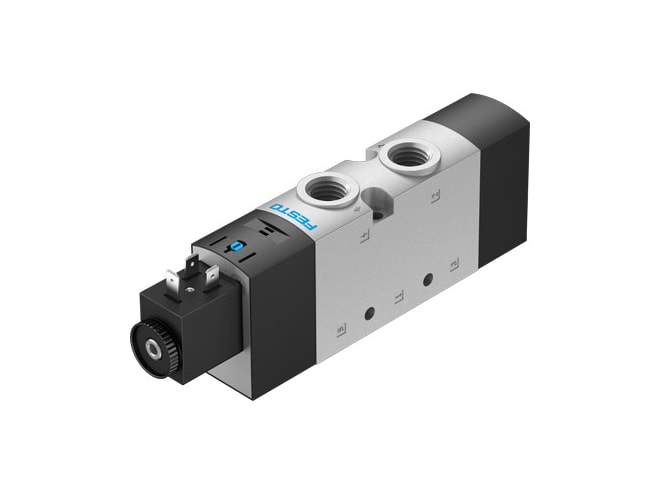

Festo VUVS-L30-M52-MD-G38-F8-1B2 Solenoid Valve

Features

• 5/2-way, monostable valve function
• Electric type of actuation
• 31MM valve size
• 2300L2 standard nominal flow rate
• 0.25MPA operating pressure
• 1MPA operating pressure
• 2.5BAR operating pressure
• 10BAR operating pressure
• Piston gate valve design
• Mechanical spring type of reset
• C UL us - Recognized (OL) approval
• See certificate maritime classification
• DNVGL-TAA000011J certificate issuing authority
• IP65 degree of protection
• With plug socket degree of protection
• To IEC 60529 degree of protection
• 9.4MM nominal size
• With flow control option exhaust-air function
• Soft sealing principle
• Optional mounting position
• Detenting manual override
• Non-detenting manual override
• Pilot actuated type of piloting
• Internal pilot air supply
• Non-reversible flow direction
• 991035 symbol
• Overlap lap
• 0.4 b value
• 9.9LSB c value
• 62MS switching time off
• 17MS switching time on
• 100% duty cycle
• 2000MIS max. positive test pulse with 0 signal
• 3600MIS max. negative test pulse with 1 signal
• 24 V DC: 3.3 W characteristic coil data
• +/- 10 % permissible voltage fluctuations
• Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
• Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
• Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 vibration resistance
• Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 shock resistance
• 2 - Moderate corrosion stress corrosion resistance class cRC
• -10GC media temperature
• 60GC media temperature
• Compressed air to ISO 8573-1:2010 [7:4:4] pilot medium
• 500G product weight
• Type B electrical connection
• To industry standard (11 mm) electrical connection
• Either: type of mounting
• On manifold rail type of mounting
• With through-hole type of mounting
• Not ducted breather connection
• M5 pilot exhaust port 84
• RoHS-compliant note on materials
• HNBR material seals
• NBR material seals
• Die-cast aluminium material housing
• Painted material housing
• Wrought aluminium alloy material piston slide
• Nickel-plated steel material screws
• -10GC ambient temperature to 60GC ambient temperature
• Pneumatic connection g3/8 , port 1
• Pneumatic connection g3/8 , port 2
• Pneumatic connection g3/8 , port 3
• Pneumatic connection g3/8 , port 4
• Pneumatic connection g3/8 , port 5
