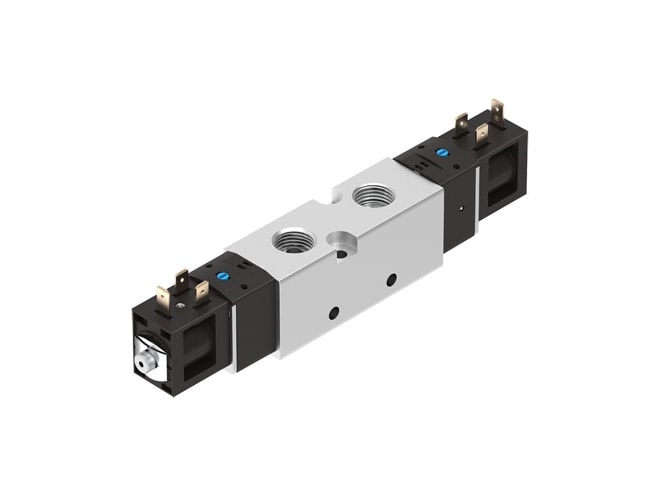

Festo VUVS-LK30-B52-D-G38-1B2-S Solenoid Valve

Features

• 5/2 double solenoid valve function
• Electric type of actuation
• 31MM valve size
• 1600L2 standard nominal flow rate
• 0.15MPA operating pressure
• 0.8MPA operating pressure
• 1.5BAR operating pressure
• 8BAR operating pressure
• Piston gate valve design
• IP65 degree of protection
• With plug socket degree of protection
• To IEC 60529 degree of protection
• 8.1MM nominal size
• With flow control option exhaust-air function
• Soft sealing principle
• Optional mounting position
• Detenting manual override
• Non-detenting manual override
• Pilot actuated type of piloting
• Internal pilot air supply
• Non-reversible flow direction
• 991005 symbol
• Overlap lap
• 0.37 b value
• 7.03LSB c value
• 10MS switching time reversal
• 100% duty cycle
• 2500MIS max. positive test pulse with 0 signal
• 1100MIS max. negative test pulse with 1 signal
• 24 V DC: 3.3 W characteristic coil data
• +/- 10 % permissible voltage fluctuations
• Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
• Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
• Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 vibration resistance
• Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 shock resistance
• 1 - Low corrosion stress corrosion resistance class cRC
• VDMA24364 zone III lABS (PWIS) conformity
• -5GC media temperature
• 50GC media temperature
• Compressed air to ISO 8573-1:2010 [7:4:4] pilot medium
• 392G product weight
• Type B electrical connection
• To industry standard (11 mm) electrical connection
• Either: type of mounting
• On manifold rail type of mounting
• With through-hole type of mounting
• Not ducted breather connection
• RoHS-compliant note on materials
• HNBR material seals
• NBR material seals
• Wrought aluminium alloy material housing
• Wrought aluminium alloy material piston slide
• -5GC ambient temperature to 50GC ambient temperature
• Pneumatic connection g3/8 , port 1
• Pneumatic connection g3/8 , port 2
• Pneumatic connection g3/8 , port 3
• Pneumatic connection g3/8 , port 4
• Pneumatic connection g3/8 , port 5
