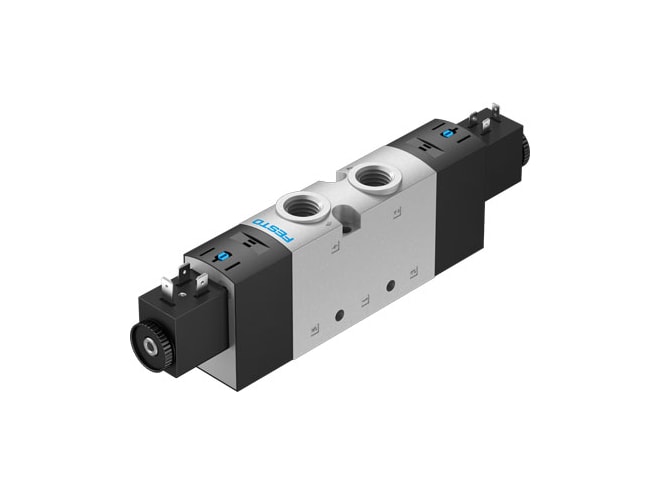

Festo VUVS-LT30-T32C-MZD-G38-F8-1B2 Solenoid Valve

Name: Festo VUVS-LT30-T32C-MZD-G38-F8-1B2 Solenoid Valve
Price: 196.08 USD
Availability: BackOrder

Size 30 Poppet valve 2x3/2-way valve, normally closed. G3/8 pneumatic connection. Reset method: Mechanical spring. Manual Override: Non-detenting, detenting. View other configurations.

$196.08

Part Numbers

VUVS-LT30-T32C-MZD-G38-F8-1B2
8036705

Highlights...

VUVS-LT30-T32C-MZD-G38-F8-1B2
By Festo
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

2x3/2-way, monostable, closed valve function
Electric type of actuation
31MM valve size
1600L2 standard nominal flow rate
0.1MPA operating pressure
1MPA operating pressure
1BAR operating pressure
10BAR operating pressure
Poppet seat design
Mechanical spring type of reset
C UL us - Recognized (OL) approval
IP65 degree of protection
With plug socket degree of protection
To IEC 60529 degree of protection
7.9MM nominal size
With flow control option exhaust-air function
Soft sealing principle
Optional mounting position
Detenting manual override
Non-detenting manual override
Pilot actuated type of piloting
External pilot air supply
Non-reversible flow direction
995863 symbol
Underlap lap
0.25MPA pilot pressure
1MPA pilot pressure
2.5BAR pilot pressure
10BAR pilot pressure
0.4 b value
6LSB c value
33MS switching time off
13MS switching time on
100% duty cycle
2000MIS max. positive test pulse with 0 signal
3600MIS max. negative test pulse with 1 signal
24 V DC: 3.3 W characteristic coil data
+/- 10 % permissible voltage fluctuations
Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 vibration resistance
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 shock resistance
2 - Moderate corrosion stress corrosion resistance class cRC
-10GC media temperature
60GC media temperature
Compressed air to ISO 8573-1:2010 [7:4:4] pilot medium
543G product weight
Type B electrical connection
To industry standard (11 mm) electrical connection
Either: type of mounting
On manifold rail type of mounting
With through-hole type of mounting
Not ducted breather connection
M5 pilot exhaust port 82
M5 pilot exhaust port 84
G1/8 pilot air port 12
G1/8 pilot air port 14
RoHS-compliant note on materials
HNBR material seals
NBR material seals
TPE-U(PU) material seals
Painted die cast aluminium material housing
Wrought aluminium alloy material piston slide
Galvanised steel material screws
-10GC ambient temperature to 60GC ambient temperature
Pneumatic connection g3/8 , port 1
Pneumatic connection g3/8 , port 2
Pneumatic connection g3/8 , port 3
Pneumatic connection g3/8 , port 4
Pneumatic connection g3/8 , port 5
