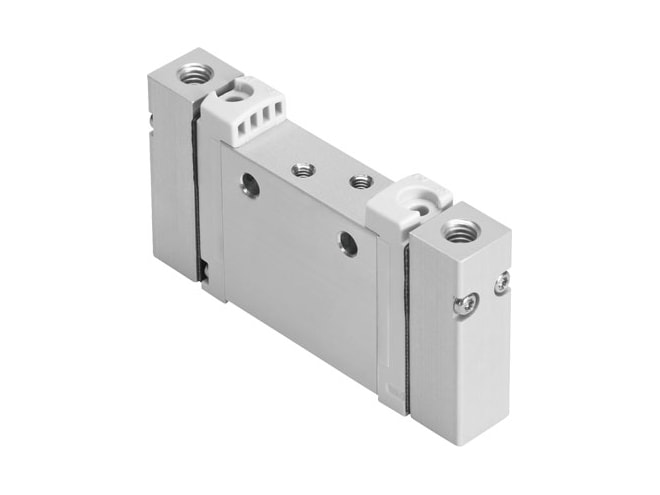

Festo VUWG Series Pneumatic Valve

2x3/2-way valve in one valve housing.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open 8:00 am to 5:30 pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 10bar max. pressure
  • 80 to 100l/min standard nominal flow rate
  • 5/11 to 7/19ms on/off switching time for supporting models
  • 5 to 9ms changeover time for supporting models
  • Piston spool design
  • Overlap or indeterminate overlap
  • Soft sealing principle
  • Pneumatic actuation type
  • Direct control type
  • Reversible flow direction
  • Exhaust air function can be throttled
  • Optional mounting via through-holes or on manifold rail; any position

The Festo VUWG Series Pneumatic Valve supplies and exhausts compressed air via the manifold rail and supply plates. The position of the supply plates and duct separations can be freely selected with the VUWG. Pressure zones are created by isolating the internal supply ducts between the manifold sub-bases by appropriate duct separation. The VUWG provides a wide range of valve functions, and in-line valves can be used as individual or manifold valves. The M5/M7 in-line valves can be mixed on one manifold rail.
