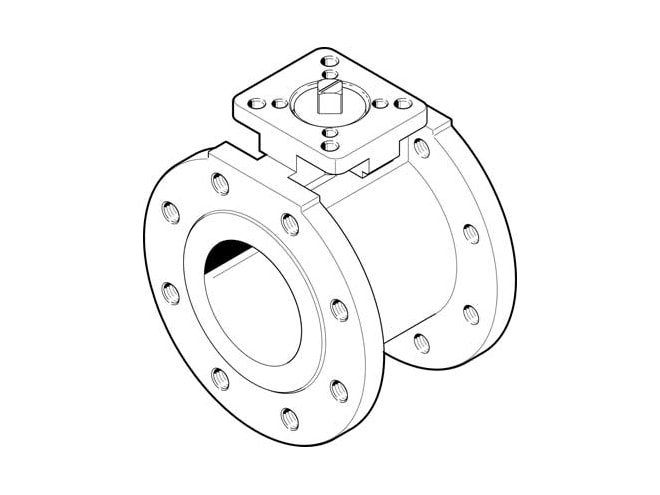

Festo VZBC Series Ball Valve and Actuator

Automatable 2-way valve with compact flange.

This model has 27 variants.
Highlights...

Features

  • 15 to 100mm nominal width
  • 10 to 148 Nm actuating torque
  • 19.4 to 1,414 m3/h flow rate
  • 2/2-way valve function
  • 2-way ball valve design
  • Soft sealing principle
  • Mechanical actuation type
  • Slot direction = flow direction
  • Reversible flow direction
  • In-line installation mounting type
  • Any mounting position
  • Flange to DIN 1092-1
  • Mounting flange to ISO 5211
  • Use in zone 1, 21, 2, 22

The Festo VZBC Series Ball Valve is automatable, compact, flange, and has a 2-way design for control of media. The valve has a stainless steel construction with a short installed length and blow-out proof shaft. Manual operation is possible using a hand lever.
