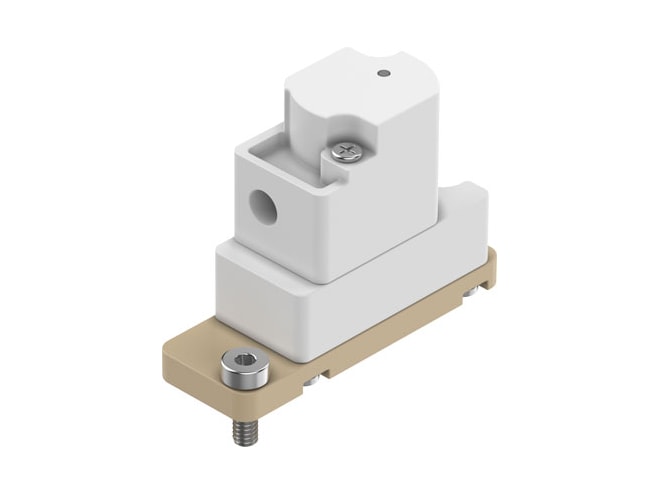

Festo VZDB Series Media Separated Pneumatic Valve

Rocker valve design with diaphragm seal.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • High flow rate with small size
  • Valve function:
    • 2/2-way, closed, monostable
    • 3/2-way, open/closed, monostable
  • Mechanical spring reset method
  • Flange fluid connection
  • 0.034 m3/h flow rate
  • 35µ internal volume
  • Soft sealing principle
  • Pneumatic actuation type
  • Piloted control type
  • Mounting via through-hole for M2 screw
  • Any mounting position
  • 0 corrosion resistance class

The Festo VZDB Series Media Separated Pneumatic Valve is used to control gaseous and liquid media in laboratories. The VZDB valve is pilot-actuated, and normally closed (2/2-way solenoid valve and 3/2-way solenoid valve) and normally open (3/2-way solenoid valve only) variants are available. Media separation helps make the valve very easy to clean. The valve uses low media consumption thanks to its small internal volume, and its high-quality materials make it suitable for aggressive media. It has high repetition accuracy, switching frequency and precision, and is thus also suitable for extremely small volumes and dosing tasks. The individual sub-base for wall mounting is designed for integration into a system or machine. It can be mounted vertically (ports underneath or to the side) or horizontally (ports underneath only).
