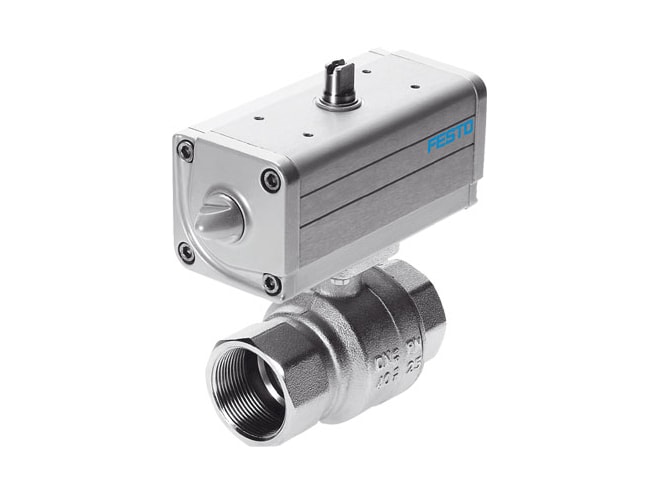

Festo VZPR Series Ball Valve Actuator Unit

Combination of a pneumatic quarter-turn actuator and a ball valve.

This model has 9 variants.
Highlights...

Features

  • 14 to 302°F medium temperature
  • 15 to 63mm nominal diameter
  • Brass design
  • Port pattern to NAMUR VDI/VDE 3845
  • PN class to DIN EN 1333
  • Wrought aluminum alloy drive housing material

The Festo VZPR Series Ball Valve Actuator Unit is a complete, ready-to-install unit with a brass ball valve and a NAMUR port pattern for solenoid valves/limit switch attachments to VDI/VDE 3845. Flow is fully open or fully closed in both directions. The 2/2-way valve can be mounted directly on the drive unit, and limit switch attachments for end-position sensing can be mounted directly on the drive unit.
