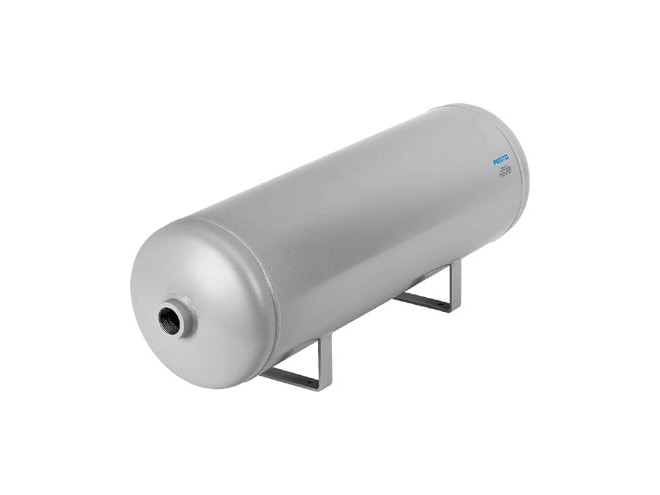

Festo VZS-20-B Air Reservoir
20 liter volume, G3/8 condensate drain connection underneath mounting position.
$673.73
Part Numbers
- VZS-20-B
- 192161
Highlights...
Overview
Features
- Volume: 20 liter
- Conforms to EN 286-1
- Compressed air to ISO 8573-1:2010 [-:-:-] (Nitrogen)
- Operating pressure: -0.095 to 1.6MPa (-0.95 to 16bar / -13.775 to 232psi)
- Media/ambient temperature: -10 to 100°C
- Max tightening torque (for connecting thread): 130Nm
- Max tightening torque (for condensate drain): 27Nm
- Condensate drain connection: G3/8
- Pneumatic connection: G1
- Powder-coated steel material
- CRC: class 4 corrosion resistance
- Product weight: 9000g
Description
The Festo VZS-20-B Air Reservoir compensates for pressure fluctuations and acts as an accumulator during periods of rapid air consumption. With a 20 liter reservoir, the VZS-20-B is able to provide compressed air to fast-pulsing drives in large quantities. The unit is constructed from powder-coated steel, and comes with class 4 corrosion protection.
