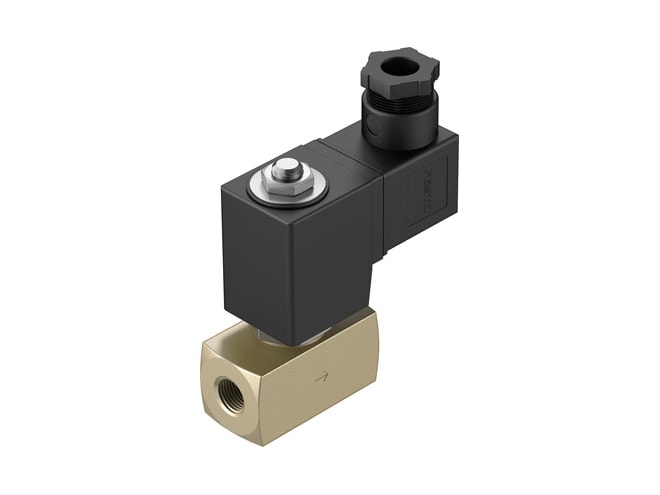

Festo VZWD Series Solenoid Valve

Ideal for high pressure ranges with low flow rates.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 2/2-way, single solenoid, closed valve function
  • Directly actuated poppet valve
  • In-line installation mounting
  • Electric actuation
  • Mechanical spring reset method
  • Non-reversible flow direction
  • Direct control type
  • Any mounting position
  • Soft sealing principle
  • 22mm2/s max. viscosity
  • IP65 protection

The Festo VZWD Series Solenoid Valve is a directly actuated valve, which switches the sealing element directly via the solenoid system. The seal generally has to lift away from the seat against the effective operating pressure using just the drive. A closing spring keeps the valve closed, assisted by the pressure of the medium. The function is dependent on the seat size, the effective operating pressure and the magnetic force. The difference with force pilot operated solenoid valves lies in the flow rate. The design is insensitive to slight contamination of the media, and switches from 0bar to the maximum operating pressure with excellent tightness.

Applications

  • Vacuum technology
  • Venting gas and tank systems
  • Safety shut-offs for burner controllers
