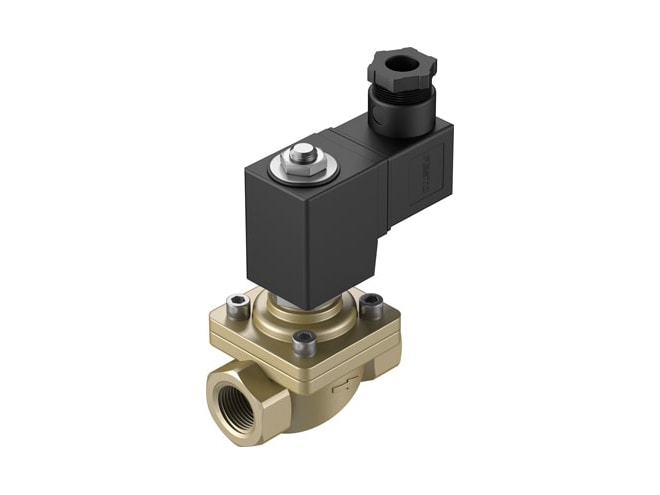

Festo VZWF Series Solenoid Valve

High flow rates; large nominal diameters with relatively small solenoids.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • Diaphragm valve, force pilot operated
  • In-line installation mounting
  • Electrical actuation
  • Solenoid upright mounting position
  • Soft sealing principle
  • 2/2-way valve, normally closed
  • 22mm2/s max. viscosity
  • No pressure difference required
  • Usable in vacuum technology
  • Choice of sealing materials for different fields of applications
  • 0 bar or higher medium pressure
  • IP65 protection

The Festo VZWF Series Solenoid Valve is a normally closed valve with diaphragm and forced lifting. When the solenoid is energized, the differential pressure from the secondary side of the diaphragm is reduced via an internal pilot hole. The effective differential pressure lifts the diaphragm away from the valve seat. If there is no differential pressure, the diaphragm is lifted directly by the solenoid. The valve opens and closes without a differential pressure between the inlet and outlet.

Applications

  • Closed applications such as cooling or filling systems
  • Vacuum
  • Liquid gas
Part Number Price Available
VZWF-B-L-M22C-N1-275-1P4-6
Show Configuration
$188.80 5 in stock
VZWF-B-L-M22C-N1-275-2AP4-6
Show Configuration
$188.80 3 in stock
VZWF-B-L-M22C-N12-135-2AP4-10
Show Configuration
$118.00 3 in stock
VZWF-B-L-M22C-N12-135-E-1P4-10
Show Configuration
$136.86 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 7-10 business days". Click here to select options
