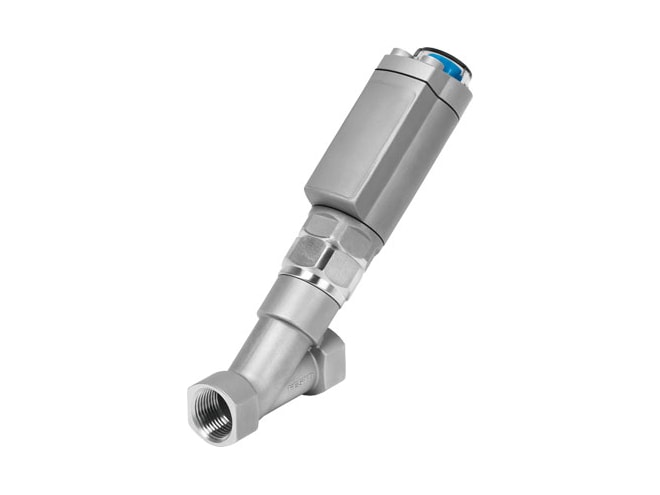

Festo VZXA Series Angle Seat Valve

Highly flexible; accommodates extremely high flow rates.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open 8:00 am to 5:30 pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • Poppet valve design with piston actuator
  • Pneumatic actuation type
  • In-line mounting installation type, any mounting position
  • 2/2 valve function
  • Female thread G1/8 pneumatic connection
  • Mechanical spring reset method
  • Position sensing via mechanical indicator
  • On/off operation control of the medium
  • ATEX category for gas II 2G
  • Type of ignition protection for gas c T6 to T3 X
  • ATEX category for dust II 2D
  • Type of ignition protection for dust c T80°C to T200°C X
  • Explosion-proof temperature rating 0°C ≤ Ta ≤ +60°C

The Festo VZXA Series Angle Seat Valve is an externally actuated valve controlled by a direct supply of compressed air, used to shut off gaseous or liquid media in pipe systems. In the process, a spindle with a soft-sealing valve disc is raised and lowered using a pneumatic actuator. The valve seat is slanted at an angle of approximately 40° in relation to the medium flow. The flow direction is determined by the design of the valve (angle seat fitting and actuator).

Two flow directions for the valve are available. "Closing in the direction of medium flow" is used for gaseous media only, while "closing against the direction of medium flow" is used for gaseous and liquid media in order to prevent or reduce water hammer.
